AVer SVC500 Video Conferencing System

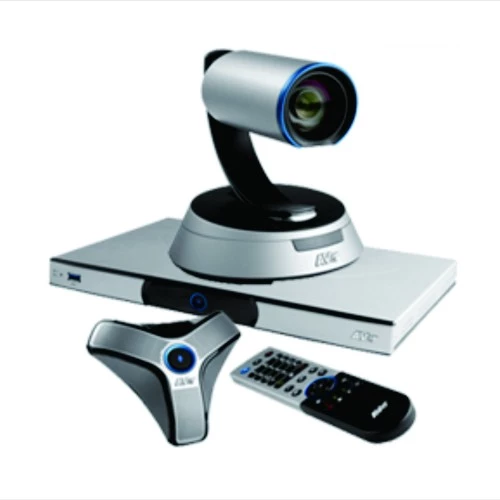

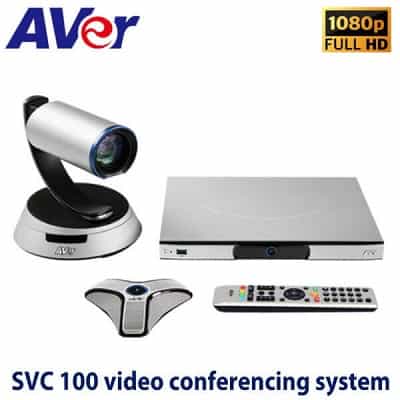

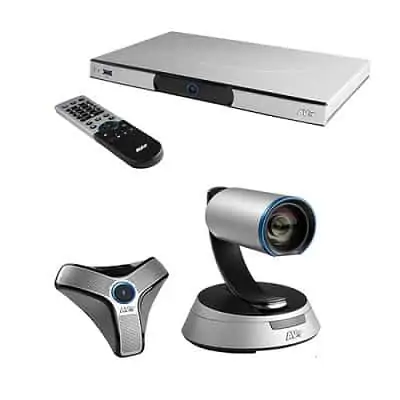

• Package contents

• • Main system unit (codec)
  • eCam PTZ III camera
  • SVC microphone array
  • IR remote control with batteries
  • Power supply (12V/6.25A)
  • VGA cable (1.8M)
  • Power cord (1.8M)
  • Camera cable (3M)
  • Microphone cable (5M)
  • Network cable (3M)
  • HDMI cable X 2 (3M)
  • Warranty card
  • Quick guide

• Communications

• • H.323, SIP standards, SIP TLS
  • Microsoft Lync 2013, Skype for Business 2016
  • WebRTC (License Required)
  • Mixed protocols between H.323, SIP, Microsoft Lync 2013, Skype for Business 2016, WebRTC
  • Call Quality bandwidth 64Kbps ~ 8Mbps
  • RJ45 network LAN (10/100/1000)
  • Manual bandwidth settings
  • Manual Max. bandwidth settings
  • Up to 60 Mbps (On 16-Way Multipoint Call)

• Camera

• • eCam PTZ III camera
  • 2-megapixel CMOS sensor
  • 18X total zoom
  • ±110° pan; +25°/-25° tilt
  • 72° FOV (H); 43° FOV (V); 82° FOV (diagonal)

• People video resolutions

• • HD1080p (1920 x 1080), up to 60fps
  • HD720p (1280 x 720)
  • 480p (848 x 480)
  • 4CIF (704 x 576)
  • CIF (352 x 288)
  • SIF (352 x 240)
  • All resolutions at 30fps

• Content video resolutions

• • HDMI supported resolutions:

• • • 1080p (1920 x 1080)
    • 720p (1280 x 720)
    • D1 (720 x 480)
    • SXGA (1280 x 1024)
    • XGA (1024 x 768)
    • SVGA (800 x 600)
    • VGA (640 x 480)

• • DVI (digital) supported resolutions:

• • • 1080p (1920 x 1080)
    • 720p (1280 x 720)
    • D1 (720 x 480)
    • SXGA (1280 x 1024)
    • XGA (1024 x 768)
    • SVGA (800 x 600)
    • VGA (640 x 480)

• • Output resolutions:

• • • Up to HD1080p (1920 x 1080) at 60 fps

• Video standards

• • H.264, H.264 HP, H.264 SVC, H.263+, H.263, H.261
  • H.239 dual video streams
  • BFCP content sharing
  • RTMP for live video streaming
  • Forward Error Correction (FEC)
  • Anti 30% video packet loss with FEC

• Video features

• • 3D denoise

• Video inputs

• • Main camera eCam PTZ III
  • HDMI for 2nd camera
  • DVI-I/VGA for presentation
  • HDMI for presentation

• Video outputs

• • HDMI x 2

• Audio standards

• • G.711, G.722, G.722.1, G.728, G.722.1C, G.729, AAC-LD

• Audio features

• • Automatic gain control (AGC)
  • Advanced noise reduction
  • Acoustic echo cancellation (AEC)

• Audio inputs

• • Microphone pickup range of 6m, daisy chain up to 4
  • HDMI
  • Line-in (3.5 mm)

• Audio outputs

• • HDMI
  • Line-out (3.5 mm)

• Other supported standards

• • H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
  • RTP, RTCP, H.350,SRTP, H.235, SNMP, NTP

• User interface

• • Single/dual monitor layout styles
  • User-friendly OSD (23 supported languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Vietnamese)
  • Display/edit site name

• Network

• • 10/100/1000Mbps
  • NAT/firewall traversal (H.460)
  • High Efficiency Lost Packet Recovery (HELPeR™)
  • API support via Telnet
  • Wake-on-LAN (WOL) support
  • IPv4 and IPv6 support
  • Network test
  • Quality of service (QoS)
  • VLAN (802.1Q / 802.1P)
  • EAP 802.1x

• Security

• • AES (Advanced Encryption Standard) function (128-bit)
  • Password protection for system settings
  • Password protection for remote system management

• Web management tool

• • Remote management
  • Live monitoring
  • Firmware update
  • Phonebook download/upload/edit
  • Restore system settings
  • Export call history

• Value-added features

• • Meeting recording

• • • In meeting and offline recording
    • Save directly to USB flash drive
    • Supports screen re-layout during playback
    • Playback and file conversion via VCPlayer software (.mov and .mp4 format)

• • EZMeetup software/App

• • • 30-day for free trial
    • Connect with H.264 video codec
    • Receive resolution up to full HD 1080p at 30fps
    • Transmit resolution up to full HD 1080p at 30fps
    • Support content sharing, capture and recording

• • EZDraw App

• • • Import .JPG, .PNG, .GIF and .BMP files
    • Export .PNG files
    • A maximum of 10 devices can be connected

• • ScreenShare software (Wirelessly share content)
  • VCLink software (Control and Sharing in smartphone)
  • VCAssist software (Intelligent Meeting Assistant)
  • Dual monitor support and SnapShot
  • Speed dialing via hot keys (10 sets)
  • Camera presets (100 positions)
  • Firmware update via USB flash drive
  • Screensaver and auto power off mode
  • 2nd camera control from SVC AVer Remote (Via RS-232 with visca/pelco-d/pelco-p)
  • Group calling
  • Supports SIP voice calls
  • Dual camera and dual content image by Side-by-Side or PIP (4 Video Transmission simultaneously includes Primary camera + 2nd camera + 2 Different contents)
  • ScreenShare software (Wirelessly share content)
  • VCLink software (Control and Sharing in smartphone)
  • VCAssist software (Intelligent Meeting Assistant)
  • Dual camera and dual content image by Side-by-Side or Picture-in-Picture
  • iSCSI storage device settings
  • Built-in SIP server(Up to 100 Registrations, 50 Pair calling)
  • Support AVer Register Server (ARS)
  • Meeting ID method and High-Res mode

• Power supply

• • AC 100V ~240V, 50/60Hz
  • Consumption: EIAJ 12V, 6.25A

• Environmental data

• • Operation temperature: 0 ~40°C
  • Operation humidity: 20% ~80%
  • Storage temperature: -20 ~60°C
  • Storage humidity: 20% ~80%

• Physical characteristics

• • Package dimensions: 422 x 336 x 374mm
  • Package weight: 8.88kg
  • Main system (codec): 320 x 267.4 x 37.3mm
  • eCam PTZ III: 205 x 205 x 195mm
  • SVC microphone array: 144.8 x 128.45 x 27.8mm

• Optional accessories

• • Additional microphone
  • Camera mount
  • USB-to-RS232 converter

• Software options

• • 2,4,6,8,10 multipoint license for up to maximum 16 sites
  • WebRTC License

• Warranty

• • 3year warranty

**For Full HD support, please check with your software application provider for system/hardware requirements.
***Built-in 32G recording storage capacity (actual formatted capacity may be less).
