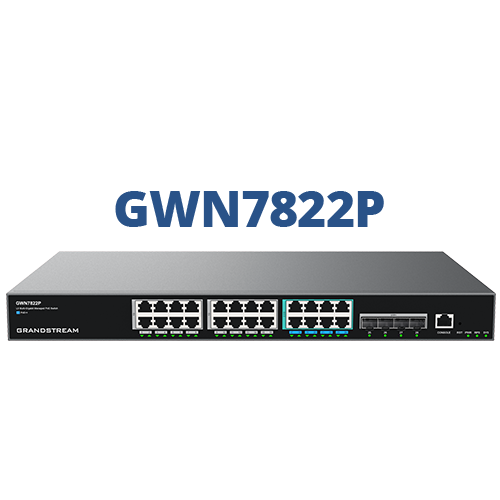

Grandstream GWN7822P Multi-Gigabit 24-Port PoE+ Layer 3 Managed Switch

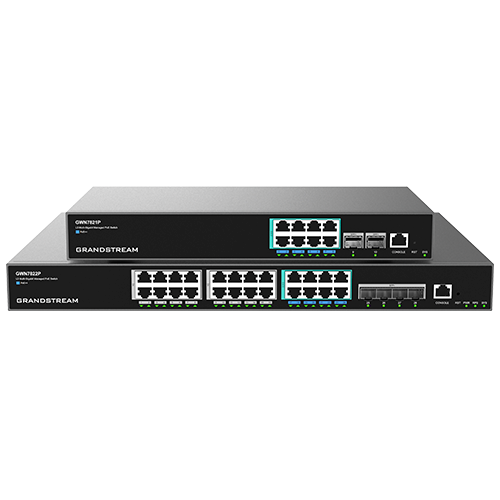

Grandstream GWN7822P Multi-Gigabit 24-Port PoE+ Layer 3 Managed Switch - Image 2
, , , ,

Grandstream GWN7822P Multi-Gigabit 24-Port PoE+ Layer 3 Managed Switch

Grandstream
Compare

GWN78xx-user-manual

GWN7820_QIG_ML

  • 24 x 1G/2.5G Ethernet ports with PoE+ support
  • Supports Layer 3 static routing, RIP, and policy-based routing
  • Up to 400W PoE power budget for IP phones, APs, and cameras
  • Advanced security features including 802.1X, ACL
  • Centralized management via GWN.Cloud or local web GUI
  • Supports VLAN, QoS, IGMP snooping, LACP, and more
  • Enterprise-grade performance with fanless silent design
  • Dual firmware image support for enhanced reliability

$418.00

Compare

Grandstream GWN7822P Multi-Gigabit 24-Port PoE+ Layer 3 Managed Switch

The Grandstream GWN7822P is a powerful 24-port Layer 3 enterprise-grade  engineered for high-performance, scalability, and PoE+ support. GWN7822P 24-Port features a multi-gigabit Ethernet ports, advanced routing capabilities, and centralized network management. GWN7822P is ideal for businesses and large-scale deployments seeking reliability and efficiency.  Its perfect for high-bandwidth enterprise applications.

Enhance your enterprise network with the GWN7822P – a powerful 24-port managed PoE+ switch with Layer 3 support and cloud management.

Key of Features Grandstream GWN7822P

  • 24 x 1G/2.5G Ethernet ports with PoE+ support
  • Supports Layer 3 static routing, RIP, and policy-based routing
  • Up to 400W PoE power budget for IP phones, APs, and cameras
  • Advanced security features including 802.1X, ACL
  • Centralized management via GWN.Cloud or local web GUI
  • Supports VLAN, QoS, IGMP snooping, LACP, and more
  • Enterprise-grade performance with fanless silent design
  • Dual firmware image support for enhanced reliability
  • Ideal for medium to large business networks
SKU: GWN7822P Categories: , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:
Brands

Color

Network connection type

Method of Connectivity

Number of Ports

24-Ports

Grandstream GWN7822P Technical Specifications

brandGrandstream
Network ProtocolsIPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x
Memory256MB RAM 8MB Nor Flash,

128MB Nand Flash

Jumbo Frame (Bytes)10240
PoE StandardsIEEE 802.3af/at/bt
Gigabit Ports16x 1G, 8x 2.5G
SFP+ Ports4(To Support DAC, cable must be ≤ 5m)
Maximum Amount of

Supported Modules

SM-10G: 4

MM-10G: 4

RJ45-10G: 2(Note: RJ45-10G modules must be interval inserted)

Console1
Link Aggregation Groups14
Integrated Power Supply420W(54V/7.78A)
External Redundant Power Supply (RPS)54V(300W)
Maximum Output Power Per PoE Port30W for port 1-16, 60W for port 17-24
Max Total PoE Output Power360W
Surge Protection± 6KV CM and DM for power

± 4KV CM for network ports

ESD± 12KV for contact discharge
Auxiliary Ports1x Reset Pinhole
Forwarding ModeStore-and-forward
Total non-blocking throughput76Gbps
Switching Capability152Gbps
Forwarding Rate113.088Mpps
Packet Buffer12Mb
Network Latency<4μs
StackingYes, up to 4 devices
Switching16K MAC addresses, including static, dynamic and filtering MAC address

4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, MAC-based VLAN, Protocol-based VLAN, voice VLAN

Private VLAN (pending)

VLAN virtual interface with 9216 MTU

256 ARP/NDP

Spanning tree, 32 instances for STP/RTSP/MSTP/PVST(+)

Routing512 (IPv4)/128(IPv6) routes

32 static routing

Policy routing

Dynamic routing, including RIP, RIPng, OSPF, OSPFv3, BGP and IS-IS(pending)

Routing policy

VRRP (pending)

MulticastIGMP Snooping with IGMPv2 and IGMPv3

MLD Snooping with MLDv1 and MLDv2

MVR

QoS/ACLPort priority

Priority mapping

Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ

Traffic shaping

Rate limit

2K ACL for Ethernet, IPv4 and IPv6

DHCPDHCP server, DHCP relay, Option 82, 60, 160 and 43
MaintenanceCPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, mirroring, UDLD(pending) and copper test
SecurityUser hierarchical management and password protection, HTTPS, SSH, Telnet

Identity authentication including 802.1X and MAC authentication

AAA authentication including RADIUS, TACACS+

Storm control

Port isolation, port security, sticky MAC

Filtering MAC address

IP source guard, DoS attack prevention, ARP inspection

DHCP Snooping

Loop protection including BPDU protection, root protection and loopback

protection

Kensington Security Slot (Kensington Lock) support

MountingDesktop, or Rack-Mount (rack-mounting kits included)
System LEDs1x tri-color LED for device tracking and status indication
Power Supply LEDs2x green-color LEDs for per power supply PWR&RPS
PoE Powered LEDs24x yellow-color LEDs
Data Transferring LEDs28x green-color LEDs
Fan2
EnvironmentalOperation: 0°C to 45°C, humidity 10% to 90% RH(Non-condensing)

Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)

Dimensions440mm(L)x300mm(W)x44mm(H)
Unit Weight4.1Kg
Package Content1x Switch

1x 1.2m AC Cable

1x 25cm Ground Cable

4x Rubber Footpads

1x Power Cord Anti-Trip

2x Rack-Mounting Kits

1x RPS, External Redundant Power Supply (Optional)

8x Screws (KM 3*6)

1x Quick Installation Guide

1x Console Cable (Optional)

ComplianceFCC, CE, RCM, IC
