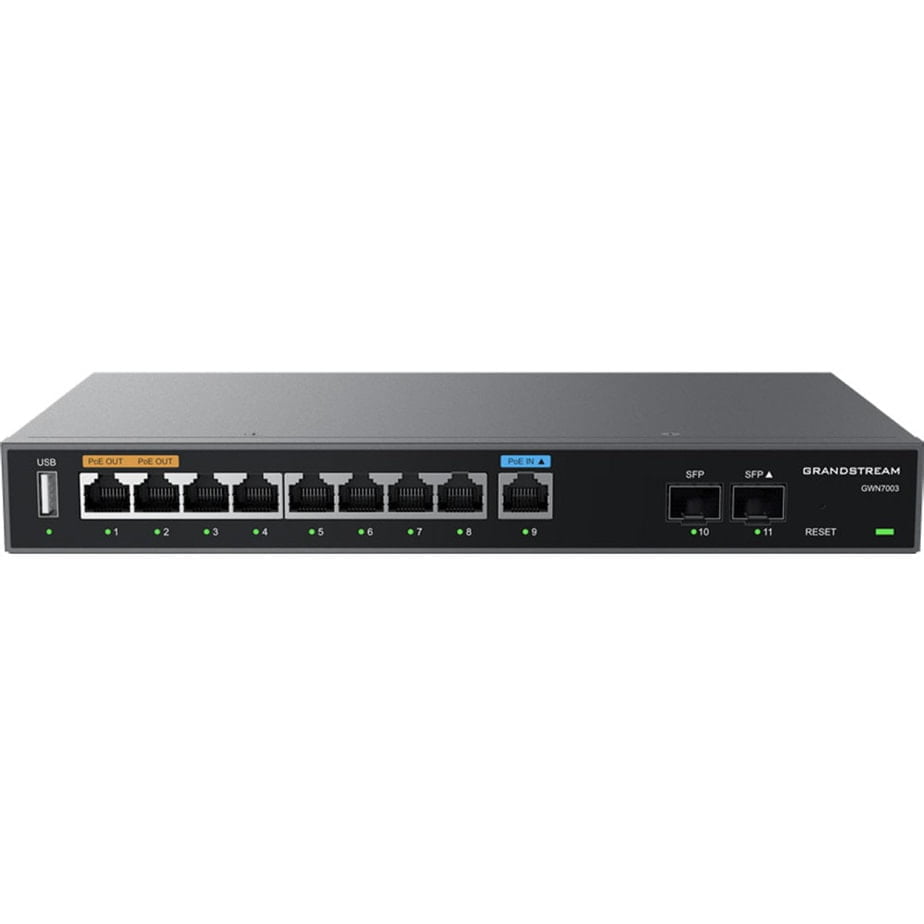

Grandstream GWN7003 Multi-WAN Gigabit VPN Router
[digitnet_promo_icons]
Key Features
- Ports: 1x GbE PoE in + 2x GbE PoE out.
- Multiple Gigabit ports
- VPN support
[icon name=”download” prefix=”fas” style=”color: #ff3c20; font-size: 12px;”] Grandstream GWN7700 Switch Series Datasheet
- Brands: Grandstream
- Color: Black & Grey
Click any tab above to view the information.
Description
[vc_row][vc_column][vc_column_text]
For Technical Support Contact
[/vc_column_text] [/vc_column][/vc_row]
Accessories
This section can show compatible accessories, installation kits, cables, brackets, batteries, or related add-ons.
Specifications
This section shows product attributes such as brand, model, SKU, power, size, material, color, and compatibility.
Grandstream GWN7003 Technical Specifications
| Brand | Grandstream |
|---|
| CPU | Dual ARM Cortex A53 1GHz | |||
| Memory and NAT Sessions | 512MB RAM, 256MB Flash, 60K NAT sessions | |||
| Network Interfaces | 2x 2.5 Gigabit SFP ports and 9x Gigabit Ethernet ports *All ports support WAN/LAN configurable | |||
| NAT Throughput | 2.2Gbps | |||
| IPsec VPN Throughput | 530Mbps | |||
| Auxiliary Ports | 1x USB 2.0 port, 1x Reset Pinhole | |||
| Mounting | Desktop, wall-Mount or rack-mount (rack-mount brackets included) | |||
| LEDs | 13x single-color LEDs for device tracking and status indication | |||
| Connection Type | DHCP, Static IP, PPPoE, PPTP, L2TP | |||
| Network Protocols | IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab | |||
| QoS | VLAN, TOS Support multiple traffic classes, filter by port, IP address, DSCP, and policing App Qos VoIP Prioritization
| |||
| Firewall | DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG, TURN Service | |||
| Security | Application/protocol monitoring and traffic statistics Content filtering: Supports Application/URL/DNS/Web Content Filtering Safe search
| |||
| VPN | SSL VPN Server / Client-to-Site IPsec VPN Client-to-Site / Site-to-Site PPTP VPN Server / Clien-to-Site L2TP Client-to-Site WireGuard (pending) IPSec Encryption: DES, 3DES, AES IPSec Authentication: MD5, SHA-1, SHA2-256 IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14 IPSec Protocols: ESP IPSec NAT Traversal SSL VPN Encryption: AES, DES SSL Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512 SSL VPN Certificate: RSA PPTP Encrpytion: MPPE 40-bit, 128-bit, IPSec PPTP/L2TP Authentication: MS-CHAPv1/2
| |||
| Max Concurrent VPN Tunnels | Up to 100 Tunnels | |||
| Network Management | GWN7003 embedded controller can manage itself and up to 150 GWN APs | |||
| GWN.Cloud offers a free cloud management platform for unlimited GWN Routers and GWN APs. | ||||
| PoE Input | Standard: IEEE 802.3af/at | |||
| PoE Output | 2x PoE out ports Passive 48V or IEEE802.3af | |||
| PoE Power Budget | 24V DC 1A: 12.8W 24V DC 1.5A: 24.8W | |||
| Power & Green Energy Efficiency | Universal power adaptor included: Input: 100-240VAC 50-60Hz Output: 24V DC 1A (24W) | |||
| Environmental | Operation: 0°C to 40°C Storage: -30°C to 60°C Humidity: 10% to 90% Non-condensing | |||
| Physical | Unit Dimension: 260mm(L)x149.35mm(W)*35mm(H); Unit Weight: 1096g Entire Package Dimension: 297mm(L)x255.5mm(W)x54mm(H); Entire Package Weight: 1443g | |||
| Package Content | GWN7003 Router, Universal Power Supply, Network Cable, Quick Installation Guide, 8 x screws,1 x ground wire, 2 x mounting brackets | |||
| Compliance | FCC, CE, RCM, IC, UKCA | |||
Technical Specifications
| Brands | Grandstream |
|---|---|
| Color | Black & Grey |
