Grandstream GWN7806(P) Enterprise Layer 2+ Managed Network Switch

Grandstream

Key Features

  • 48 Gigabit Ethernet ports and 6 Gigabit SFP+ ports
  • Supports deployment in IPv6 and IPv4 networks
  • Smart power control to support dynamic PoE/PoE+ power allocation per port

Guide & Datasheet (PDF)

$510.50

Compare
$1,086.00 for 3 item(s)

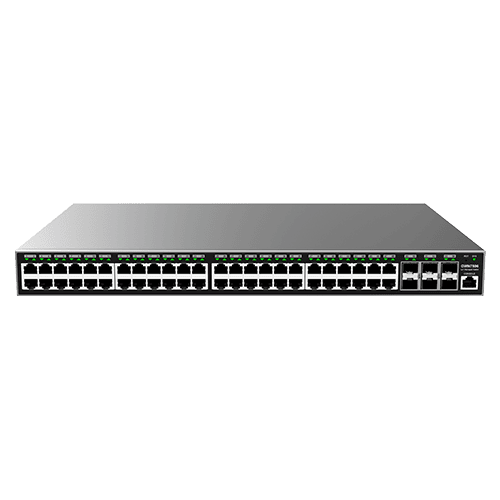

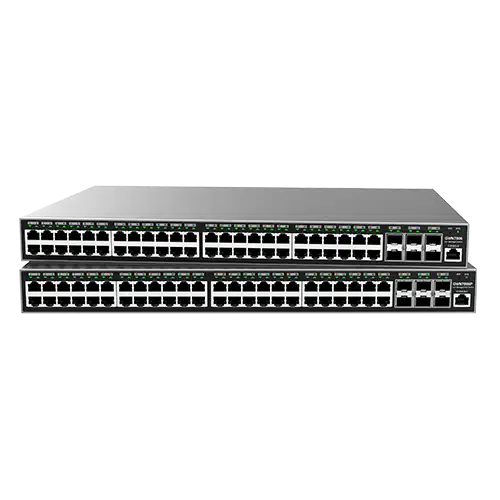

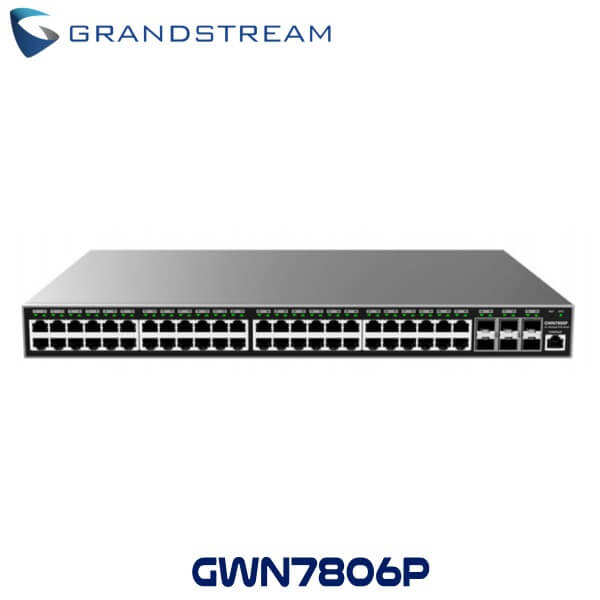

Grandstream GWN7806P 48-Port Gigabit Enterprise Layer 2+ Managed PoE Network Switch

Introducing the Grandstream GWN7806P, a cutting-edge layer 2+ stackable managed network switch engineered to empower small-to-medium enterprises with scalable, secure, and high-performance networking solutions. Designed to facilitate the establishment of intelligent business networks that are fully controllable, this switch boasts an array of advanced features tailored to meet the evolving needs of modern enterprises.

At its core, the GWN7806P offers support for advanced VLAN, providing unmatched flexibility in traffic segmentation. This, coupled with its advanced Quality of Service (QoS) capabilities, ensures the prioritization of critical network traffic, optimizing overall network performance. Adding to its efficiency, the switch incorporates IGMP/MLD Snooping, intelligently managing multicast traffic to further enhance network performance.

Security is paramount, and the GWN7806P doesn’t disappoint. It comes equipped with robust security measures including ARP Inspection, IP Source Guard, DoS protection, port security, and DHCP snooping, safeguarding against potential threats.

In terms of power management, the GWN7806P features smart dynamic PoE output, making it seamless to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints. Deployment and management are made simple with intuitive interfaces including the local Web user interface and CLI (command-line interface). Moreover, support is extended through GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platforms, ensuring effortless oversight and administration.

Key highlights of the GWN7806P include:

– 48 Gigabit Ethernet ports and 6 Gigabit SFP+ ports, catering to diverse connectivity requirements.
– Smart power control for dynamic PoE/PoE+ power allocation per port for PoE models, optimizing energy utilization.
– Seamless deployment in both IPv6 and IPv4 networks, ensuring compatibility and future-proofing.
– Reliability features such as fault detection, device protection, dual boot, dual system file redundancy, link aggregation, and storm control, enhancing network resilience.
– An embedded controller for efficient switch management, complemented by GWN.Cloud and GWN Manager for centralized oversight.
– Built-in QoS capabilities for efficient traffic prioritization, enhancing network performance and user experience.
– Support for stacking, facilitating the management of up to 16 switches through a single interface while establishing redundant backups across multiple devices.

In conclusion, the Grandstream GWN7806P represents the pinnacle of enterprise-grade managed switches, offering exceptional value and performance for small-to-medium businesses seeking reliable, scalable, and intelligently managed networking solutions.

For Technical Support Contact

SKU: GWN7806P Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
Weight 5.1 kg
Dimensions 400 × 301 × 44 mm
Brands

Color

Number of Ports

48-Ports

Grandstream GWN7806P Technical Specifications

Brand Grandstream
Network Protocol IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
Gigabit Ports 48
SFP+ Ports 6
Note: Support DAC cable, and must be ≤ 5m
Maximum no. of Supported Modules SM-10G: 6

MM-10G: 6

RJ45-10G: 3

Note: RJ45-10G modules must be interval inserted
Console 1
# of PoE Ports 48
Integrated Power Supply 470W
Maximum Output Power Per PoE Port 30W
Max Total PoE Output Power 400W
PoE Standards IEEE 802.3af/at
Auxiliary Ports 1x Reset Pinhole
Forwarding Mode Store-and-forward
Total non-blocking throughput 108Gbps
Switching Capability 216Gbps
Forwarding Rate 160.704Mpps
Packet Buffer 16Mb
Switching

32K static, dynamic and filtering MAC addresses

4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN

VLAN virtual interface

GVRP (pending)

27 link aggregation

Spanning tree, 64 instances for STP/RSTP/MSTP



Routing Static routing
Multicast

IGMP Snooping

MLD Snooping

MVR (pending)



QoS/ACL

Port priority

Priority mapping

Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ

Traffic shaping

Rate limit

4K ACL for Ethernet, IPv4 and IPv6



DHCP DHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43
Maintenance CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test
Security

User hierarchical management and password protection, HTTPS, SSH, Telnet

802.1X authentication

AAA authentication including RADIUS, TACACS+

Storm control

Port isolation, port security, sticky MAC

Filtering MAC address

IP source guard, DoS attack prevention, ARP inspection

DHCP Snooping

Loop protection including BPDU protection, root protection(pending) and loopback protection(pending)

Kensington Security Slot (Kensington Lock) support



Mounting Desktop, Rack-Mount(rack-mounting kits included)
LEDs 1x tri-color LED for device tracking and status indication54x green-color LEDs for data transferring48x yellow-color LEDs for PoE powered (GWN7806P)
Fan 3
Environmental Operation: 0°C to 45°C, humidity: 10% to 90% RH(Non-condensing) Storage: -10°C to 60°C, humidity:10% to 90% RH(Non-condensing)
Dimensions 440mm(L)x301mm(W)x44mm(H)
Unit Weight 5.1Kg
Package Content Switch, 1x 1.2m(10A) AC Cable, 1x 25cm Ground Cable, 4x Rubber Footpads, 2x Rack-Mounting Kits, 8x Screws(PM 3*6), 1x Power Cord Anti-Trip, 1x Quick Installation Guide, 1x Console Cable(Optional)
Compliance FCC, CE, RCM, IC, UKCA
