Grandstream GWN7832 Gigabit Managed Network Switch
Grandstream GWN7832 Gigabit Managed Network Switch
Grandstream GWN7832 Gigabit Managed Network Switch
Grandstream GWN7832 Gigabit Managed Network Switch
Grandstream GWN7832 Gigabit Managed Network Switch
Grandstream GWN7832 Gigabit Managed Network Switch
, , , ,

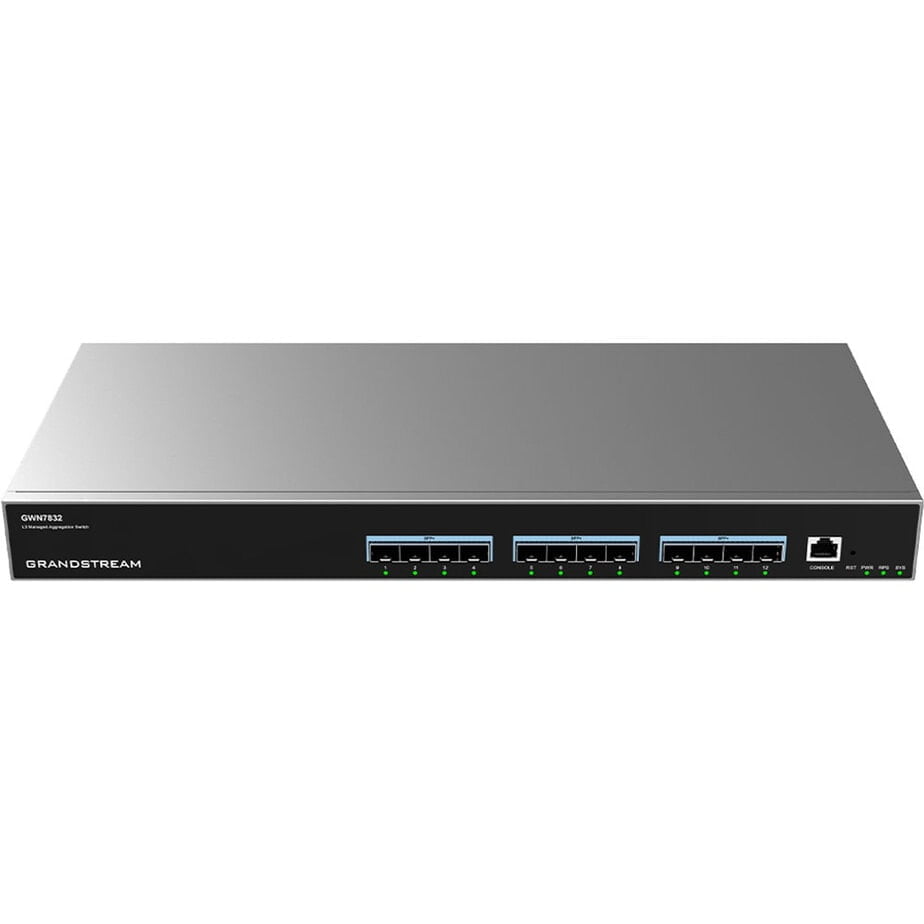

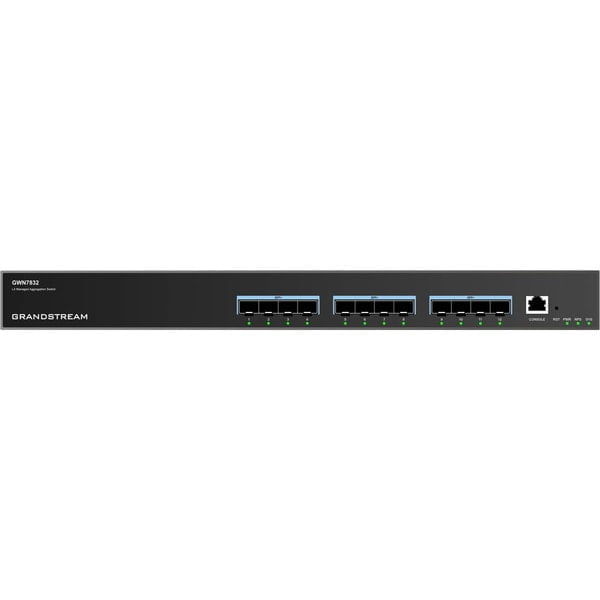

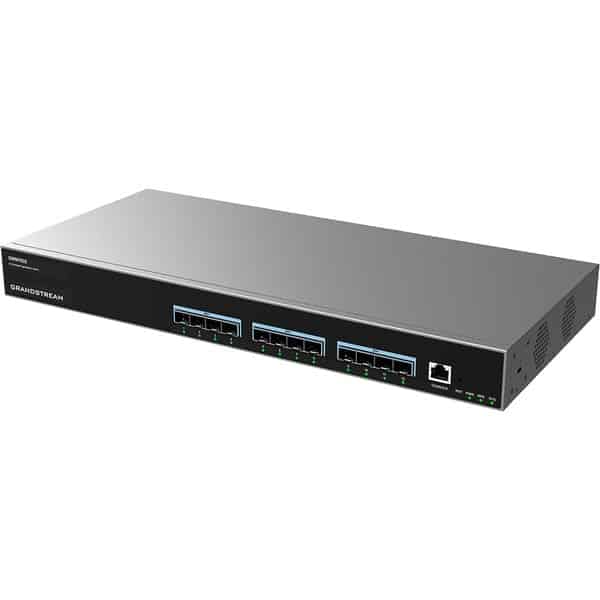

Grandstream GWN7832 12Ports 10G SFP Layer 3 Aggregation Managed Switch

Grandstream
Add to Wishlist
Compare

Got A Question? Contact Us.

We Offer Good Discount      Expert Technical Support

  • Key Features
    • 12 Gigabit SFP+ ports
    • Supports deployment in IPv6 and IPv4 networks
    • Built-in QoS allows for prioritisation of network traffic

Grandstream GWN7700 Switch Series Datasheet

$273.56

Compare
$458.84 for 3 item(s)

row]

Grandstream GWN7832 12Ports 10G SFP Layer 3 Aggregation Managed Switch

The GWN7830 Series consists of Layer 3 aggregation managed switches designed to empower enterprises in constructing scalable, secure, high-performance, and intelligent business networks that are easily manageable and support maximum capacity. These switches offer advanced VLAN capabilities for flexible and sophisticated traffic segmentation, as well as advanced QoS features for prioritizing network traffic. Additionally, they incorporate IGMP/MLD Snooping to optimize network performance and comprehensive security measures to guard against potential attacks.

Management of the GWN7830 series is versatile, with options including the local Web user interface and the command line interface (CLI). Furthermore, this series is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. With complete end-to-end quality of service, adaptable security settings, and support for maximum network capacity, the GWN7830 Series provides enterprise-grade Layer 3 aggregation switches ideal for medium-to-large deployments.

Key Features:

  • 12 10Gigabit SFP (SFP+) ports
  • Supports deployment in IPv6 and IPv4 networks
  • Comprehensive security features including ARP Inspection, IP Source Guard, DoS protection, port security, and DHCP snooping
  • Embedded controller for switch management, compatible with GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
  • Built-in QoS capabilities for prioritizing network traffic
For Technical Support Contact

Related Products

SKU: GWN7832 Categories: , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Grandstream GWN7832 Technical Specifications

BrandGrandstream
Network ProtocolIPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
Gigabit Ethernet Ports/
Gigabit SFP Ports/
Gigabit SFP+ Ports12

(Note: Support DAC Cable and must be ≤ 5m)

Maximum no. of Supported ModulesSM-10G: 12

MM-10G: 12

RJ45-10G: 6

(Note: RJ45-1G, RJ45-10G modules must be interval inserted)

Console1
Integrated Power Supply60W
External Redundant Power Supply( RPS)12V/60W
Auxiliary Ports1x Reset Pinhole
Forwarding ModeStore-and-forward
Total non-blocking throughput120Gbps
Switching Capability240Gbps
Forwarding Rate80.352Mpps
Packet Buffer16Mb
Network Latency<2μs
Switching32K MAC addresses, including static, dynamic and filtering MAC address

4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN

VLAN virtual interface

GVRP (pending)

6 link aggregation

Spanning tree, 64 instances for STP/RSTP/MSTP

RoutingStatic routing

Dynamic routing, including RIP, RIPng, OSPF and OSPFv3

Policy routing(pending)

MulticastIGMP Snooping with IGMPv2 and IGMPv3

MLD Snooping with MLDv1 and MLDv2

MVR (pending)

QoS/ACLPort priority

Priority mapping

Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ

Traffic shaping

Rate limit

4K ACL for Ethernet, IPv4 and IPv6

DHCPDHCP server, DHCP relay, Option 82, 60, 160 and 43
MaintenanceCPU and memory monitoring, fault detection and alarm for power supply and fan, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test






Security

User hierarchical management and password protection, HTTPS, SSH, Telnet

802.1X authentication

AAA authentication including RADIUS, TACACS+

Storm control

Port isolation, port security, sticky MAC

Filtering MAC address

IP source guard, DoS attack prevention, ARP inspection

DHCP Snooping

Loop protection including BPDU protection, root protection(pending) and loopback protection(pending)

Kensington Security Slot (Kensington Lock) support

MountingDesktop, Wall-Mount or Rack-Mount (rack-mounting kits included)
System LEDs1x tri-colour LED for device tracking and status indication
Power Supply LEDs2x bi-colour LEDs for per power supply PWR&RPS
Data Transferring LEDs12x bi-colour LEDs for 1G/10G
Fan2
EnvironmentalOperation: 0°C to 45°C, humidity 10% to 90% RH(Non-condensing)

Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)

Dimensions440mm(L)x200mm(W)x44mm(H)
Unit Weight2.67Kg
Package Content1x Switch

1x 1.2m(10A) AC Cable

1x 25cm Ground Cable

4x Rubber Footpads

1x Power Cord Anti-Trip

2x Rack-Mounting Kits

8x Screws (KM 3*6)

1x Quick Installation Guide

1x Console Cable (Optional)

1x RPS, External Redundant Power Supply (Optional)

ComplianceFCC, CE, RCM, IC, UKCA
