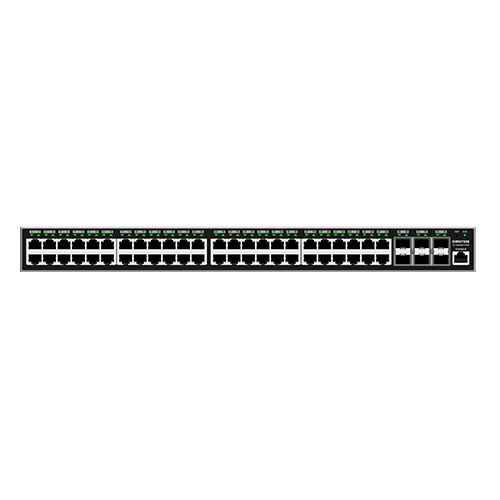

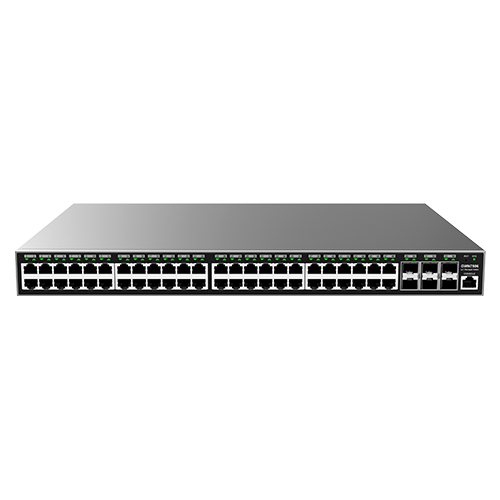

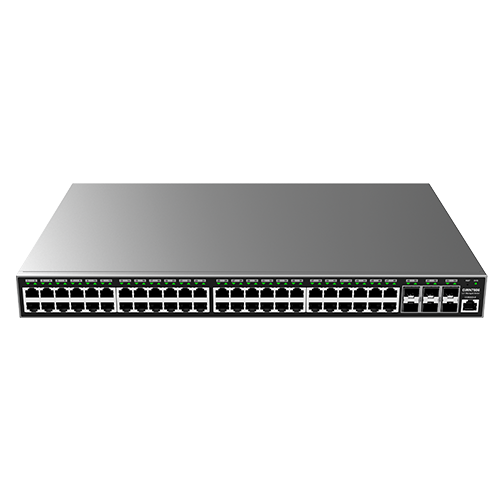

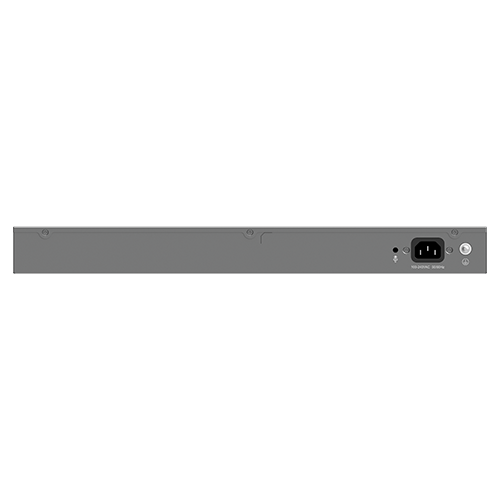

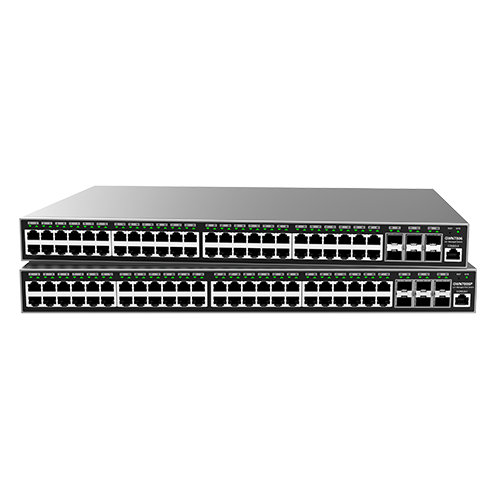

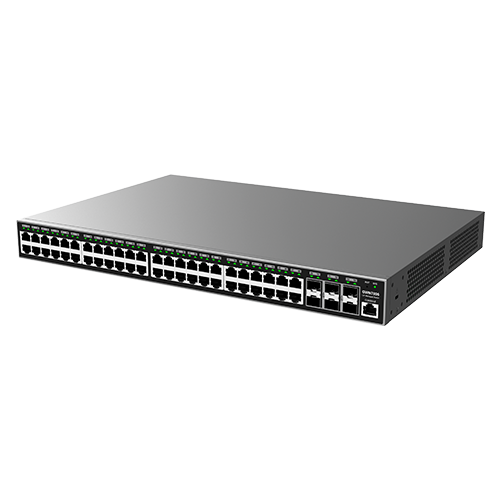

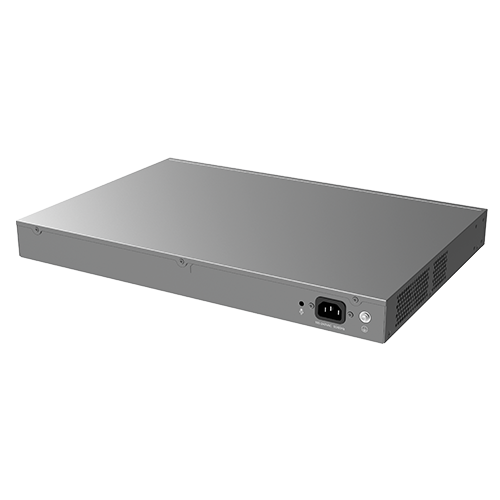

Grandstream GWN7806P 48-Port Gigabit PoE+ Managed Network Switch
Grandstream GWN7806P 48-Port Gigabit PoE+ Managed Network Switch - Image 2
Grandstream GWN7806P 48-Port Gigabit PoE+ Managed Network Switch - Image 3
Grandstream GWN7806P 48-Port Gigabit PoE+ Managed Network Switch - Image 4
Grandstream GWN7806P 48-Port Gigabit PoE+ Managed Network Switch - Image 5
Grandstream GWN7806P 48-Port Gigabit PoE+ Managed Network Switch - Image 6
Grandstream GWN7806P 48-Port Gigabit PoE+ Managed Network Switch - Image 7
Grandstream GWN7806P 48-Port Gigabit PoE+ Managed Network Switch - Image 8
, , , , , , , , , , , ,

Grandstream GWN7806P 48-Port Gigabit PoE+ Managed Network Switch

Grandstream
Compare

Datasheet_GWN7806_English

GWN7806P_ML_QIG

GWN78xx-user-manual

  • 48 Gigabit Ethernet ports with PoE+ support (802.3af/at)
  • 6 Gigabit SFP uplink ports for high-speed fiber connections
  • Advanced Layer 2+ management features including VLANs, QoS, ACLs, and static routing
  • Power budget up to 400W for PoE devices
  • Fanless design for silent operation and extended longevity
  • Integrated with Grandstream GWN Cloud for easy centralized management

₦862,000.00

Compare

Grandstream GWN7806P 48-Port Gigabit PoE+ Managed Network Switch

The Grandstream GWN7806P Network Switch is a high-performance 48-port Gigabit Layer 2+ managed network switch designed for enterprise-grade networking. Featuring advanced QoS, robust PoE+ support, and seamless integration with Grandstream’s GWN Cloud platform, the GWN7806P delivers reliable, secure, and scalable network connectivity for modern business environments.

The GWN7806P from Grandstream is a Layer 2+ managed Gigabit switch equipped with 48 PoE+ ports and 6 SFP uplink ports, making it ideal for powering IP phones, access points, and surveillance systems. Grandstream GWN7806P Network Switch supports dynamic VLANs, IGMP snooping, static routing, and comprehensive security features, ensuring efficient traffic management and enterprise-grade protection.

Key Features of Grandstream GWN7806P

  • 48 Gigabit Ethernet ports with PoE+ support (802.3af/at)
  • 6 Gigabit SFP uplink ports for high-speed fiber connections
  • Advanced Layer 2+ management features including VLANs, QoS, ACLs, and static routing
  • Power budget up to 400W for PoE devices
  • Fanless design for silent operation and extended longevity
  • Integrated with Grandstream GWN Cloud for easy centralized management
  • Strong network security protocols: 802.1X, port security, DoS protection
  • Ideal for enterprise networks, IP surveillance, VoIP, and wireless access point deployments
SKU: GWN7806 Categories: , , , , , , , , , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:
Brands

Color

Network connection type

Grandstream GWN7806P Technical Specifications

brandGrandstream
Network ProtocolIPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
Gigabit Ports48
SFP+ Ports6
Note: Support DAC cable, and must be ≤ 5m
Maximum no. of Supported ModulesSM-10G: 6

MM-10G: 6

RJ45-10G: 3

Note: RJ45-10G modules must be interval inserted
Console1
# of PoE Ports48
Integrated Power Supply470W
Maximum Output Power Per PoE Port30W
Max Total PoE Output Power400W
PoE StandardsIEEE 802.3af/at
Auxiliary Ports1x Reset Pinhole
Forwarding ModeStore-and-forward
Total non-blocking throughput108Gbps
Switching Capability216Gbps
Forwarding Rate160.704Mpps
Packet Buffer16Mb
Switching

32K static, dynamic and filtering MAC addresses

4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN

VLAN virtual interface

GVRP (pending)

27 link aggregation

Spanning tree, 64 instances for STP/RSTP/MSTP



RoutingStatic routing
Multicast

IGMP Snooping

MLD Snooping

MVR (pending)



QoS/ACL

Port priority

Priority mapping

Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ

Traffic shaping

Rate limit

4K ACL for Ethernet, IPv4 and IPv6



DHCPDHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43
MaintenanceCPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test
Security

User hierarchical management and password protection, HTTPS, SSH, Telnet

802.1X authentication

AAA authentication including RADIUS, TACACS+

Storm control

Port isolation, port security, sticky MAC

Filtering MAC address

IP source guard, DoS attack prevention, ARP inspection

DHCP Snooping

Loop protection including BPDU protection, root protection(pending) and loopback protection(pending)

Kensington Security Slot (Kensington Lock) support



MountingDesktop, Rack-Mount(rack-mounting kits included)
LEDs1x tri-color LED for device tracking and status indication54x green-color LEDs for data transferring48x yellow-color LEDs for PoE powered (GWN7806P)
Fan3
EnvironmentalOperation: 0°C to 45°C, humidity: 10% to 90% RH(Non-condensing) Storage: -10°C to 60°C, humidity:10% to 90% RH(Non-condensing)
Dimensions440mm(L)x301mm(W)x44mm(H)
Unit Weight5.1Kg
Package ContentSwitch, 1x 1.2m(10A) AC Cable, 1x 25cm Ground Cable, 4x Rubber Footpads, 2x Rack-Mounting Kits, 8x Screws(PM 3*6), 1x Power Cord Anti-Trip, 1x Quick Installation Guide, 1x Console Cable(Optional)
ComplianceFCC, CE, RCM, IC, UKCA
