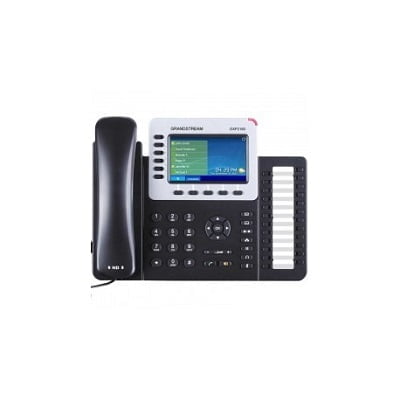

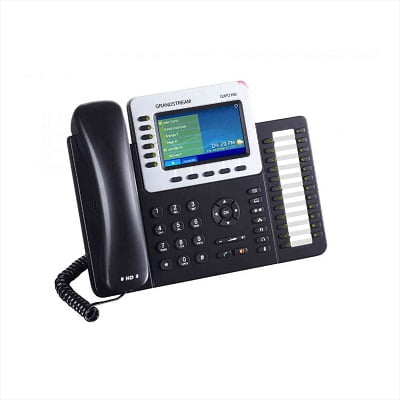

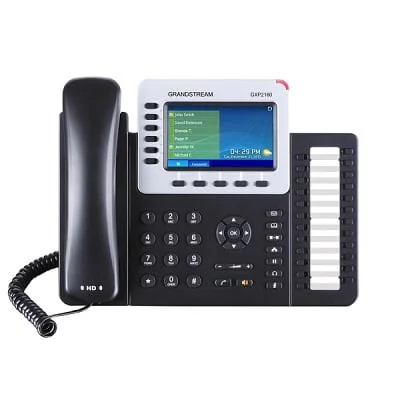

Grandstream GXP2160 Business IP Phone – Technical Specifications

• More Intuitive Web UI- we’ve made changes that make the Web UI easier to navigate and more aesthetically pleasing.
• Simplified call transfer options-now you can attend or send a blind transfer
• Caller ID on transferred calls
• Ability to switch between accounts and see the screen while in a call
• Allow callers to permeate DND by whitelisting them
• Option to send an instant message via the Web UI or the phone
• Streamlined Bluetooth pairing
• Additional options for soft key configuration
• Manage call history through the phone and the Web UI
• Option to add picture images to your contacts

Protocols/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DMS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802. 1x, TLS, SRTP, IPv6

Network Interfaces

• Dual switched auto sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE

Graphic Display

• 4.3 inch (480×272) TFT colour LCD

Bluetooth

• Yes, Bluetooth V2.1

Feature Keys

• 6 line keys with up to 6 SIP accounts, 24 speed-dial/BLF extension keys with dual-colour LED,5 programmable context sensitive soft keys, 5 navigation/menu keys, 11 dedicated function keys for MESSAGE (with LED indicator), PHONEBOOK, TRANSFER. CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL-

Voice Codec

• Support for G.729A/B, G.711u/a-law, G.726, G.722 (wide band) and iLBC, in band and out of band DTMF (in audio, RFC2833, SIP INFO)

Auxillary Ports

• RJ9 headset jack (allowing EHS with Platronics headsets), USB, extension module port

Telephony Features

• Hold, transfer, forward 5-way conference, call park, shared call appearance (SCA)/bridged line appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customization of screen, off-hook auto dial, auto answer, click to dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over.

Sample Features

• Google Voice (Pending), weather, stock, currency news (pending), Internet radio (pending), Last.fm (pending), GMI available for advanced customer application development.

HD Audio

• Yes, both on handset and speakerphone

Base Sound

• Yes, allow 2 angle positions

Wall Mountable

• Yes

QoS

• Layer 2 (802.1Q 802.ap) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and administrator level passwords, MD5 and MD5-sess based authentication, AES based secure configuration file, SRTP, TLS, 902.1x media access control

Multi-Language

• English, Arabic, Chinese, Croatian, Czech, Dutch, German, French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenia, Spanish, Turkish

Upgrade/Provisioning

• Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file

Power & Green Energy Efficiency

• Universal power adapter included: input: 100-240V; Output +12V 1A;
• Integrated Power-over-Ethernet (802.3af)
• Max power consumption 12W ((power adapter) or 12.95W (PoE)

Physical

• Dimensions 22mm (W) x 210mm (L) x 93mm (H);
• Unit Weight 0.98kg; Package weight 1.63kg (pending)

Temperature And Humidity

• 0 ~ 40 °C (32 ~ 104°F), 10 ~ 90% (non-condensing)

Package Content

• GXP2160 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide

Compliance

• FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2, ENH6100-3-3, EN60950-1 AS/NZS CISPR 22Class B, AS/NZS CISPR 24, RoHS; UL 60950 (power adapter)
