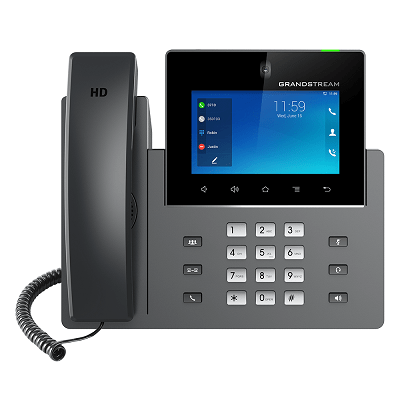

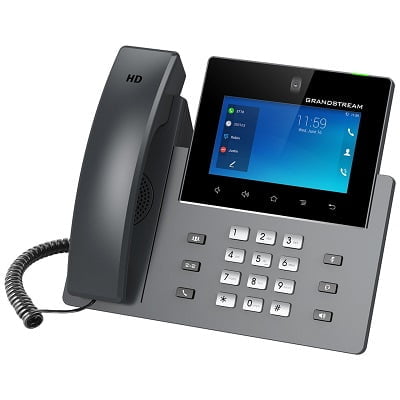

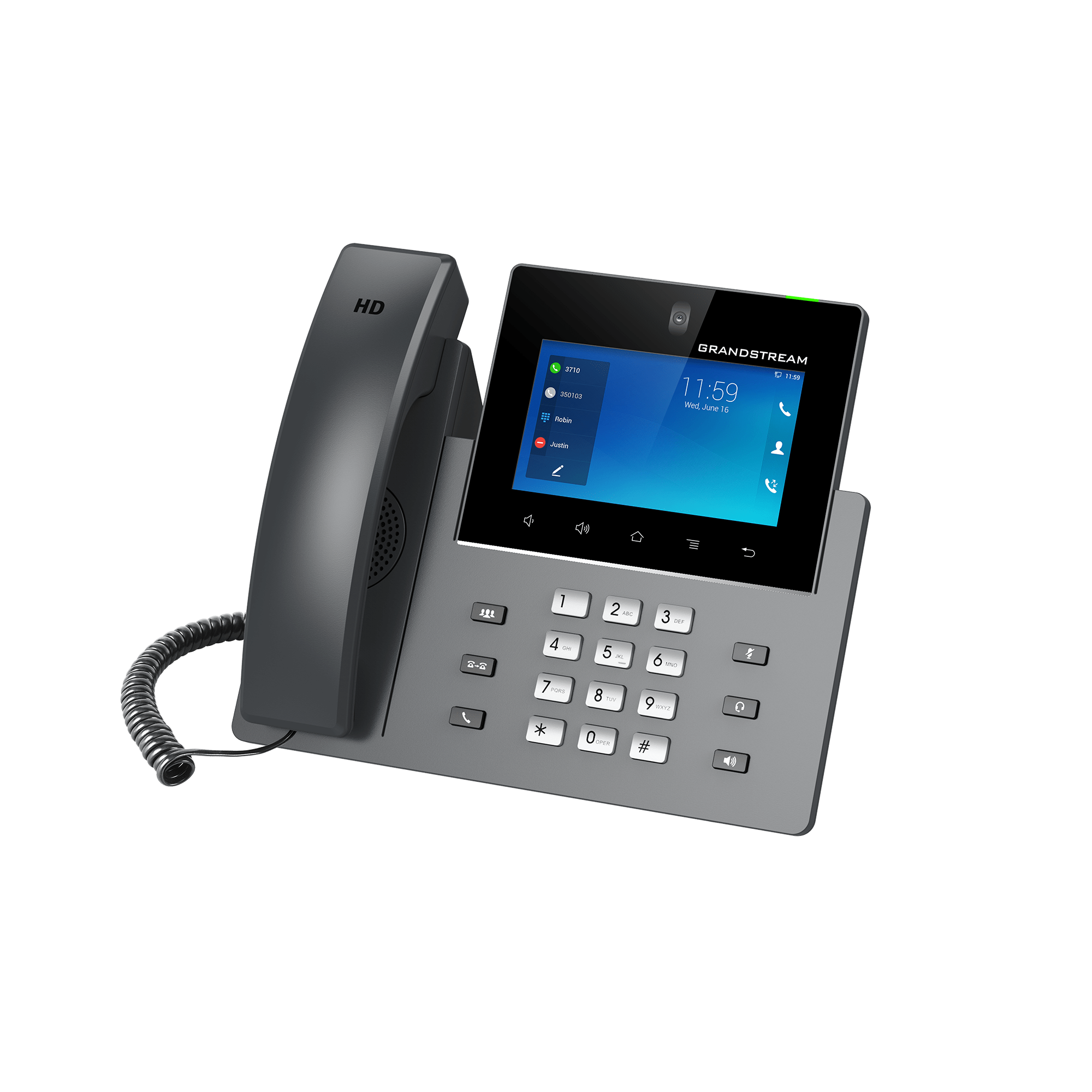

Grandstream GXV3350 IP Video Phone

 Specifications

Protocols/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®

Network Interfaces

• Dual switched 10/100/1000 Mbps ports with integrated PoE/PoE+

Bluetooth

• Yes, integrated Bluetooth 4.2 + EDR

WiFi

• Yes, dual-band (2.4GHz & 5GHz) with 802.11 a/b/g/n

Graphic Display

• 5.0 inch 1280×720 capacitive touch screen (5 points) HD TFT LCD

Camera

• Built-in 1 mega-pixel CMOS tiltable camera with privacy wheel, 720p 30fps

Auxiliary Ports

• RJ9 headset jack (allowing EHS with Plantronics headsets), extension module port, USB port, HDMI-out (1.4 up to 720p30fps)

Feature Keys

• 11 functions keys for CONFERENCE, TRANSFER, SEND/REDIAL, MUTE, EARPHONE, SPEAKERPHONE, VOLUME -/+. 3 dedicated Android keys for HOME, MENU, and BACK

Voice Codecs and Capabilities

• Wide-band Opus, wide-band G.722, G.711µ/a, G. 729A/B, G.726-32, iLBC, in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS

Video Codecs and Capabilities

• H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps, 3-way video conference (720p@30fps), anti-flickering, auto focus and auto exposure

Telephony Features

• Hold,
• Transfer
• Forward (unconditional/no-answer/busy),
• Call park/pickup, 6-way audio
• Conference(including the host)
• Shared-call-appearance (SCA) / bridged-line-appearance (BLA)
• Programmable key
• Downloadable contacts (XML, LDAP, up to 1000 items)
• Call record(local and server)
• Call log (up to 1000 records)
• Call waiting
• Auto answer
• XML customization of screen
• Click-to-dial
• Flexible dial plan
• Hot desking
• Personalised music ringtones and music on hold
• Server redundancy & fail-over

Sample Applications

• Local apps: Contacts, Call History, File Manager, Programmable Key, Settings, Browser,Voicemail, Calculator, Clock, Recorder, GS Market, etc.
• Supports third-party Android apps
• API/SDK available for advanced custom application development

Android

• Runs Android 7.0

Applications Deployment

• Supports Android 7.0 compliant applications to be developed, downloaded and run on the device with provisioning control

HD Audio

• Yes, 2 omnidirectional microphones, HD handset and speakerphone with support for wideband audio

Base Stand

• Yes, base stand with three adjustable levels

QoS

• Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and administrator level passwords, MD5 and MD5-sess based authentication, 256bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control

Multi-language

• English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and more

Upgrade/Provisioning

• Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using R-069 or AES encrypted XML configuration file

Power & Green Energy Efficiency

• Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4

Temperature and Humidity

• Operation: 0°C to 40°C, Storage: -10°C to 60°C,
• Humidity: 10% to 90% Non-condensing

Package Content

• GXV3350 phone, handset with cord, base stand, universal power supply, network cable, quick installation guide, GPL license

Compliance

• FCC: Part 15 Class B; Part 15 Subpart C(15.247); Part 15 Subpart E(15.407); Part 68 HAC
• IC: RSS-247; RSS-Gen; RSS-102; IECS-003; CS03
• CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; EN 301 489-1; EN 301 489-17; EN 300 328; EN 301 893; EN 62311
• RCM: AS/NZS CISPR 32; AS/NZS 4268; AS/NZS 62368.1; AS/CA S004
