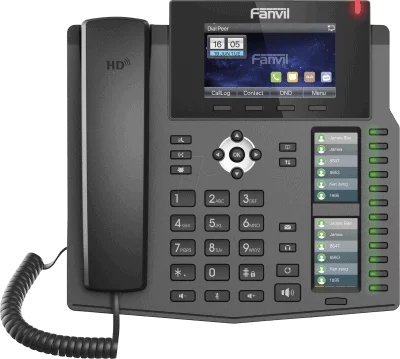

Fanvil Fan-X6 6 Line Ultra-Elegant Design, Gigabit Triple Color Screen Phone 4.3

(1 customer review)
Fanvil

  • 6 SIP lines
  • HD voice
  • PoE enabled
  • Desktop/wall mount
  • Call out/answer/reject/mute/hold

59,900.00 61,000.00

103,800.00 for 3 item(s)
Fanvil X6 Enterprise Solution designed to meet the ever changing dynamic business communications with up to 20 SIP lines, HD voice, 3 LCDs (Main + 2 x DSS), and dual gigabit ports. The Fanvil X6 offers excellent price to performance ratio and is fully certified with leading PBX providers. X10 is a lower version of X6U

Fanvil X6 Key Features

  • 20 SIP lines
  • HD voice
  • PoE enabled
  • 3 LCDs (main + DSS)
  • Phonebook (1000 entries)
  • Remote phonebook (XML/LDAP)
  • Call log (300 entries, in/out/missed)

All in One – SIP Phone with DSS Extension Module
The Fanvil X6 is cost effective since there is no need to purchase an expansion module. The X6 comes complete with 12 DSS keys, which correspond to the LCD display to provide dynamic DSS/BLF functions of up to 60 DSS keys.


Fanvil X6 Enterprise IP PhoneHigh-end IP Phone
Give the Best Experience to You

4.3″ Main Color Screen + 2 x 2.4”DSS Screen, Smart and Friendly User Interface.The new X6 combines the advantages of existing enterprise phone UI design experience with color screen.
The UI appearance and operating experience have a qualitative leap.


All-in-One = SIP Phone + DSS Extension ModuleX6 has12 DSS keys corresponded to the LCD display to provide dynamic DSS/BLF functions up to
five pages at virtualized total 60 DSS keys. Carry the Function of LCD Extension Module by Itself.

Support Bluetooth with USB Dongle
Better experience for Enterprise

Fanvil X6 Enterprise Solution Support EHS Wireless HeadsetSupport EHS Wireless Headset, Professional Enterprise VoIP phone.
Fanvil Enterprise IP Phone
High-functionality Equipped for Office Working
Fanvil Enterprise IP Phone
Web Page with Mobile PhoneScan X6 screen QR code to get into web
page. Web page can be accessed with
mobile phone at anytime, anywhere.
Fanvil Enterprise IP Phone



SKU: XDU-FAN-1980 Categories: ,

Fanvil X6 – Technical Specifications

Generic

  • 20 SIP lines on all new models (Pre-2019 models can be upgraded from 6-20 SIP lines with firmware upgrade (2019).
  • HD Voice
  • PoE Enabled
  • 3 LCDs (Main + DSS)
  • Handset(HS) / Hands-free(HF) / Headphone(HP) mode
  • Intelligent DSS Keys
  • Desktop / Wall-mount installation
  • Optional External Power Supply
  • Economical and Environmental friendly package
  • Industrial Standard Certifications: CE/FCC

Call Features

  • Call out / answer / reject
  • Mute / Unmute (microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forwarding (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (depending on server)
  • Redial
  • Do-Not-Disturb (per line / per phone)
  • Auto-Answering (per line)
  • Voice Message (on server)
  • Local 3-way Conference
  • Hot Line
  • Hot-Desking

Highlights

  • 2 DSS Key-mapping LCD – 12 DSS keys corresponded to the LCD display to provide dynamic DSS/BLF functions up to five pages at virtualised total 60 DSS keys.
  • Gigabit Ethernet – 10/100/1000Mbps Ethernet with PoE enabled.
  • Economic and Environmental Friendly design with Elegant Housing, with high-resolution TFT colour display, delivering a rich visual experience.
  • High Interoperability – Compatible with major platforms: 3CX, Asterisk, Broadsoft, Elastix, Zycoo, etc.

Audio

  • HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR,iLBC
  • Wideband CODEC: G.722, AMR-WB,
  • Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer up to 300ms
  • DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

  • Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
  • IP Configuration: Static / DHCP / PPPoE
  • Network Access Control: 802.1x
  • VPN: L2TP (Basic Unencrypted) / OpenVPN
  • VLAN
  • QoS

Protocols

  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • PPPoE
  • 802.1x
  • L2TP (Basic Unencrypted)
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR069

RFCs

  • 354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2
    661/2833/2976/3261/3262/3263/3264/3265/3268/3311/3
    489/3711/4346/4566/5630/
    5865

Deployment & Maintenance

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Export / Import
  • Phonebook Import/Export
  • Firmware Upgrade
  • Syslog

Physical Specifications

  • Main LCD x1: 4.3 inch (480×272) LCD colour screen
  • DSS Key-mapping LCD x2: 2.4 inch (240×320) LCD colour screen
  • Keypad: 46 keys, including
    – 4 Soft-keys
    – 8 Function keys
    – 4+1 Navigation keys + OK
    – 12 Standard Phone Digits keys
    – 3 Volume Control keys, Up/Down/Mute (Microphone)
    – 1 Hands-free key
    – 12 DSS Keys with tri-colour LED
    – 1 Page-Switch (PS) key
  • HD Hands-free Speaker (0 ~ 7KHz) x1
  • HD Hands-free Microphone (0 ~ 7KHz) x1
  • HD Handset (RJ9) x1
  • USB Port x1 (Connect with BT USB dongle)
  • Support Bluetooth headset (Through USB Dongle)
  • Support Plantronics Wireless headset (Through Plantronics APD-80 EHS Cable)
  • Standard RJ9 Handset Wire x1
  • 1.5M CAT5 Ethernet Cable x1
  • RJ9 Phone Jacket x2: Handset x1, Headphone x1
  • RJ45 Ethernet Jacket x2: Network x1 , PC x1 (Bridged to Network)
  • Main Chipset: Broadcom
  • DC Power Input: 12V/1A
  • Power Consumption: Idle – ~ W, Peak – ~W
  • Working Temperature: 0 ~ 40℃
  • Working Humidity: 10 ~ 65%
  • Dual-Functional Back Rack x1: Desktop Stand
  • Colour: Black
  • Package Dimensions: 315x270x65mm (W x H x L)
