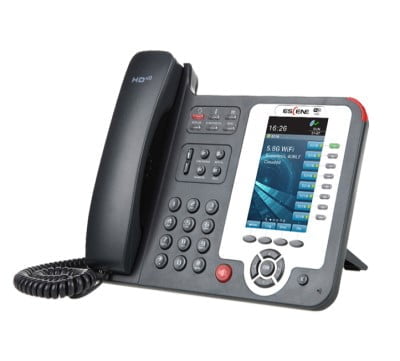

Escene WS620 Wireless IP Phone

Escene

Escene WS620 Key Features

  • Wireless working frequency 5.8GHz.
  • HD Voice: HD Codec, HD Speaker, HD Handset.
  • Multi-language, e.g. Chinese, English, Russian, France etc
  • 8 SIP accounts and support three-way conference, SMS.
  • Excellent adjustable bracket and wall-mountable.
  • 2xLAN, PoE, RJ9Headset.



$138.96 $140.00

$465.05 for 3 item(s)

Escene WS620 Wireless IP Phone

Escene WS620-PEGv4 is a small screen cordless IP phone among VoIP phones. It has the appearance of modern technology, excellent sound quality and powerful functions. It is a new generation of smart phones that replace the traditional desktop office. A device that provides powerful telephone functions through interaction with a communication platform, such as call transfer, hotline, speed dial, conference calling etc.

Escene WS620 Key Features

  • Wireless working frequency 5.8GHz.
  • HD Voice: HD Codec, HD Speaker, HD Handset.
  • Multi-language, e.g. Chinese, English, Russian, France etc
  • 8 SIP accounts and support three-way conference, SMS.
  • Excellent adjustable bracket and wall-mountable.
  • 2xLAN, PoE, RJ9Headset.
  • Support 40 paperless programmable keys.
  • XML/LDA, BLF/BLA, Search someone in the Phone book.
  • Auto-provision, HTTP/TFTP/FTP, TR069.
SKU: XPK-5487FB50 Category:

Escene WS330 – Technical Specifications

Phone Features

  • 8 SIP accounts, Hotline
  • Call hold, Call waiting, Call forward, Call return
  • Call transfer (blind/busy/ask)
  • Caller ID display, Redial, Mute, DND
  • Auto-answer, 3-way conferencing
  • Speed dial, SMS, Voicemail
  • Message Waiting Indication LED
  • Tone scheme, Volume control
  • Direct IP call without SIP proxy
  • Ring tone selection/import/delete
  • Black list, Hand-free indicator.
  • Call history: dialed/received/missed (50 -entries);
  • Multi-Language
  • Soft keys programmable, Supports PC control

Advanced Features

  • XML Phone Book search and input & output
  • Enterprise phone book(800 entries)
  • LDAP phone book
  • Functions customizable keys

IP PBX System Integration

  • Busy lamp field (BLF), BLF list
  • Bridged line appearance (BLA)
  • DND & Forward synchronization
  • Intercom, Paging, Music on hold
  • Call pickup, Dial Plan, Call recording Anonymous call, Anonymous call rejection
  • Network conference, Distinctive ringtone

Codes and Voice Features

  • Wideband Codec: G.722
  • Narrowband codec: G.711μ/A, G.723.1
  • G.726, G.729AB,iLBC
  • VAD, CNG, AEC, AGC
  • Full-duplex,

Security

  • LLDP, VLAN QoS (802.1pq),VPN(L2TP)
  • Transport Layer Security (TLS)
  • Digest authentication using MD5/MD5-sess
  • Secure configuration file via AES encryption
  • Phone lock for personal privacy protection
  • Admin/User 2-level configuration mode

Network Features

  • SIP v1 (RFC2543), v2 (RFC3261)
  • DNS SRV (RFC3263)
  • NAT Traversal: STUN mode
  • DTMF: In-Band, RFC2833, SIP Info, Auto
  • HTTP/HTTPS Web Management
  • IP Assignment: Static/DHCP/PPPoE
  • Bridge/Router mode for PC port
  • TFTP/DHCP/PPPoE client
  • DNS client, NAT/DHCP server
  • WIFI: 802.11 a/b/g/n/ac

Management

  • Auto-provision via FTP/TFTP/HTTP/HTTPS
  • SNMP V1/2 , TR069 optional
  • Configuration: browser/phone/auto-provision
  • Trace package and system log export

Physical Features

  • 480×272 graphic LCD, 4″3 high resolution
  • 42 keys, including 8 programmable keys
  • 16 LEDs: 1* status light, 8* account lights, 1* message light, 1* headset light, 4* function lights, 1* speaker lights,
  • Wall-mountable
  • 1* RJ-9 handset port
  • 1*RJ-9 headset port
  • 1xRJ45 10/100/1000M Ethernet ports
  • WIFI 5.8GHz
  • Power adapter: AC 100~240V input and
  • DC 12V/1A output
  • USB port only support DC 5V feature.
  • Power consumption: 2.5-3.5W
  • Net weight: 1.37KG
  • Dimension: 287x214x90MM
  • Operating humidity: 10~95%
  • Storage temperature: up to 60°C
