HIKVISION 4CHANNEL NVR DS7104NI-Q1/4P
, ,

Hikvison 4 Channel NVR DS7104NI-Q1/4P

HIKVISION
Compare

Key Features:

        • H.265+/H.265/H.264+/H.264 video compression
        • About  40 Mbps incoming bandwidth
        •  VGA  and HDMI simultaneous output
        • LAN port for internet connection

$40.00

Compare
$172.00 for 3 item(s)

Hikvison 4 Channel NVR DS7104NI-Q1/4P

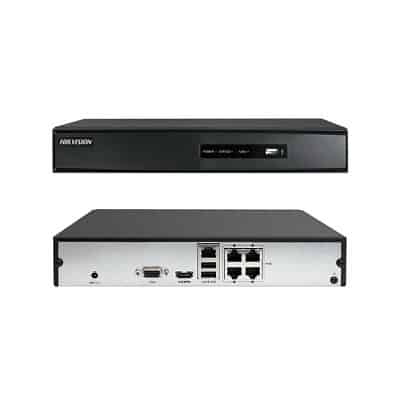

HIKVISION 4CHANNEL NVR DS7104NI-Q1/4P; A network video recorder (NVR) is a specialized computer gadget with some software programs that enables it to records video in a digital format. An NVR is typically deployed in an IP video surveillance system. This 4 channel network video recorder is equipped with LAN port, HDMI port, VGA port and USB port. It is a POE  device, compatible with any HIKVISSION IP camera. The device does not come with hard disc.

Features of HIKVISION 4CHANNEL NVR

    • H.265+/H.265/H.264+/H.264 video compression
    • About  40 Mbps incoming bandwidth
    • 60 Mbps outgoing bandwidth
    • Up to 4-ch network camera inputs
    • Up to 4-ch 1080p decoding capability
    •  VGA  and HDMI simultaneous output
    • LAN port for internet connection



SKU: SB-5487FB42 Categories: , , Tags: , , ,
    • IP Video Input

      4-ch

      Up to 4 MP resolution

    • Incoming Bandwidth40 Mbps
    • Outgoing Bandwidth60 Mbps
    • HDMI Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    • VGA Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    • Video Output ModeHDMI/VGA simultaneous output
    • Decoding
    • Decoding FormatH.265+/H.265/ H.264+/H.264
    • Recording Resolution4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
    • Synchronous Playback4-ch
    • Decoding Capability4-ch@1080p (25 fps), 2-ch@4 MP (25 fps)
    • Stream TypeVideo, Video & Audio
    • Network
    • Remote Connection16
    • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
    • Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
    • PoE
    • Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
    • Power≤ 36 W
    • StandardIEEE 802.3 af/at
    • Auxiliary Interface
    • SATA1 SATA interface
    • CapacityUp to 6TB capacity for each disk
    • Alarm In/OutN/A
    • USB InterfaceRear panel: 2 × USB 2.0
    • General
    • Power Supply48 VDC, 1 A
    • Consumption≤ 10 W
    • Working Temperature-10 to +55º C (+14 to +131º F)
    • Working Humidity10% to 90%
    • Dimension (W × D × H)200 × 200 × 48 mm (7.9″ × 8.1″ × 1.9″)
    • ≤ 1 kg (2.2 lb)
    • Certification
    • FCCPart 15 Subpart B, ANSI C63.4-2014
    • CEEN50130-4, EN 61000-3-2,EN 61000-3-3
