VOLTAGE/CURRENT/ SURGE PROTECTOR
The 40A adjustable voltage regulator, is built to protect device against power surge either over voltage or under voltage.It has the capacity to absolve surge there by cutting off power goin to any device collected to it when voltage is unstable.SKU: DNT-5487FB53 -
Accessories
LockMaster Electric Sliding Gate Opener 1200KG Automatic Motor Remote
Lockmaster heavy-duty 550W 240V AC motor, the Automatic Sliding Gate Opener has capacity to power gates up to a maximum of 1200kg. Its advanced technology also enables it to perform smooth operation modes and an adjustable open/close direction according to your requirements. It can also be set to pedestrian or midway modes.
SKU: XPK-5487FB43
VOLTAGE/CURRENT/ SURGE PROTECTOR
$12.17

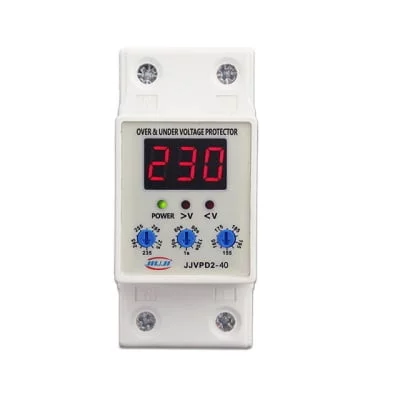

VOLTAGE/CURRENT/SURGE PROTECTOR
Main technical parameters
Function | Technical Parameter | Function | Technical Parameter |
Input voltage | AC 155-280V | Rated current | 40A,63A |
Over-voltage protection value | 235-280V
default 235V |
Over-voltage recovery value | 230-275V
default 230V |
Under-voltage protection value | 155-200V
default 155V |
Under-voltage recovery value | 160-205V
default 160V |
Recovery delay time | 1-135s
default 1s |
Power consumption |
- Place of Origin: Zhejiang, China Brand Name: jiu ji
- Model Number: JJVPD2-40 Usage: SVC
- Phase: Single Phase Current Type: AC
- Function: Over/Under Voltage Protection Output voltage: 220V
- Efficiency: High Efficiency Rated Current: 40A
Related Products Topics
Main technical parameters
Function | Technical Parameter | Function | Technical Parameter |
Input voltage | AC 155-280V | Rated current | 40A,63A |
Over-voltage protection value | 235-280V
default 235V |
Over-voltage recovery value | 230-275V
default 230V |
Under-voltage protection value | 155-200V
default 155V |
Under-voltage recovery value | 160-205V
default 160V |
Recovery delay time | 1-135s
default 1s |
Power consumption |
