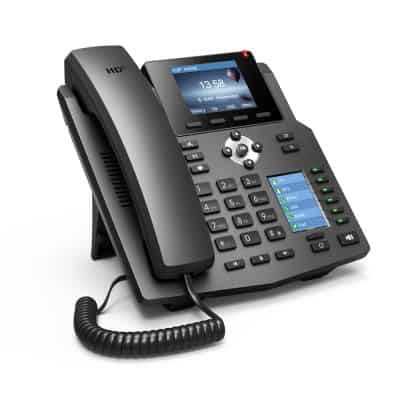

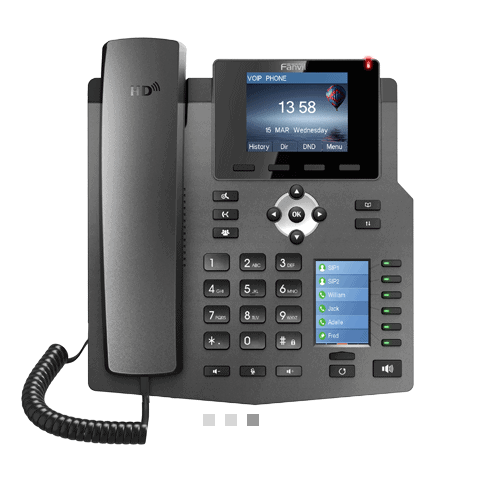

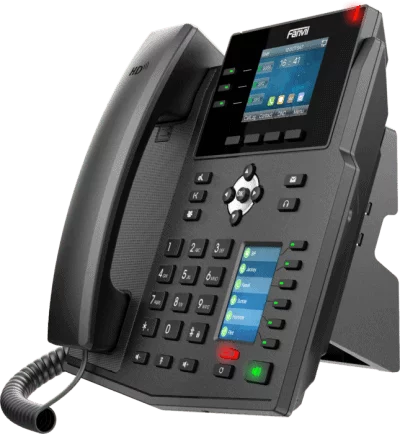

Fanvil X4G 4 Line Enterprise Gigabit IP Phone

The X4/X4G is a feature-rich sip phone for business. The 4-Line IP Phone has been designed by pursuing ease of use in even the tiniest details. Dual 10/100 Mbps(X4G: 10/100/1000 Mbps) network ports with integrated PoE are ideal for extended network use. Delivering a superb sound quality as well as rich visual experience. With second DSS color screen, the IP Phone supports up to 30 DSS keys which improve work efficiency. Using standard encryption protocols to perform highly secure remote provisioning and software upgrades.

Fanvil X4G Technical Specification

Generic

• 4 SIP Lines
• HD Voice
• PoE Enabled
• 2 LCD Colour Screens (Main + DSS)
• Handset(HS) / Hands-free (HF) / Headphone(HP) mode
  (EHS support for Plantronics headsets)
• Intelligent DSS Keys
• Desktop / Wall-mount installation
• Optional External Power Supply
• Economical and Environmental friendly package
• Industrial Standard Certifications: CE/FCC

Fanvil X4G Call Features

• Call out / answer / reject
• Mute / Unmute (microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Forwarding Calls (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Redial/Auto-Redial
• Do-Not-Disturb (per line / per phone)
• Auto-Answering (per line)
• Voice Message (on server)
• Local 3-way Conference
• Hot Line
• Hot-Desking

Phone Features

• Phonebook (500 entries)
• Remote Phonebook (XML/LDAP)
• Call log (100 entries, in/out/missed)
• Black/White List Call Filtering
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronisation
• Action URL / Active URI

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ſġ7KHz
  Frequency Response)
• Wideband ADC/DAC 16KHz Sampling
• Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
• Wideband CODEC: G.722
• Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode,
  96ms tail-length
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /
  Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical: 10/100Mbps(X4), 10/100/1000Mbps (X4G) Ethernet, dual
  bridged port for PC bypass
• IP Configuration: Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP (Basic Unencrypted) / OpenVPN
• VLAN
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• PPPoE
• 802.1x
• L2TP (Basic Unencrypted)
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR069

RFCs

• 354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/2833/2976
  /3261/3262/3263/3264/3265/3268/3311/3489/3711/4346/4566/5630/
  5865

Deployment & Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
  PNP/TR069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• Main LCD x1: 2.8 inch (320×240) LCD colour screen
• DSS key-mapping LCD x1: LCD colour screen
• Keypad: 38 keys, including:
  – 4 Soft-keys
  – 6 Function keys
  – 5 Navigation keys
  – 12 Standard Phone Digits keys
  – 3 Volume Control keys, Up/Down/Mute(Microphone)
  – 1 Hands-free key
  – 6 DSS Keys with tri-colour LED
  – 1 Page-Jump/Configuration (PJC) key
• HD Hands-free Speaker (0 ſġ7KHz) x1
• Hands-free Microphone ( HD) (0 ſġ7KHz) x1
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
  ͻRJ9 Phone Jacket x2: Handset x1, Headphone x1
• RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 2 Enabled),
  PC x1 (Bridged to Network)
• Main Chipset: Broadcom
• DC Power Input: 5V/1A
• Power Consumption: (X4) Idle – ſ 1.3W, Peak – ſ4.3W
  (X4G) Idle – ſ 1.7W, Peak – ſ5.7W
• Working Temperature: 0 ~ 40ɗ
• Working Humidity: 10 ſ 65%
• Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
• Colour: Black
• Package Dimensions: 285 x 270 x 65mm (W x H x L)
