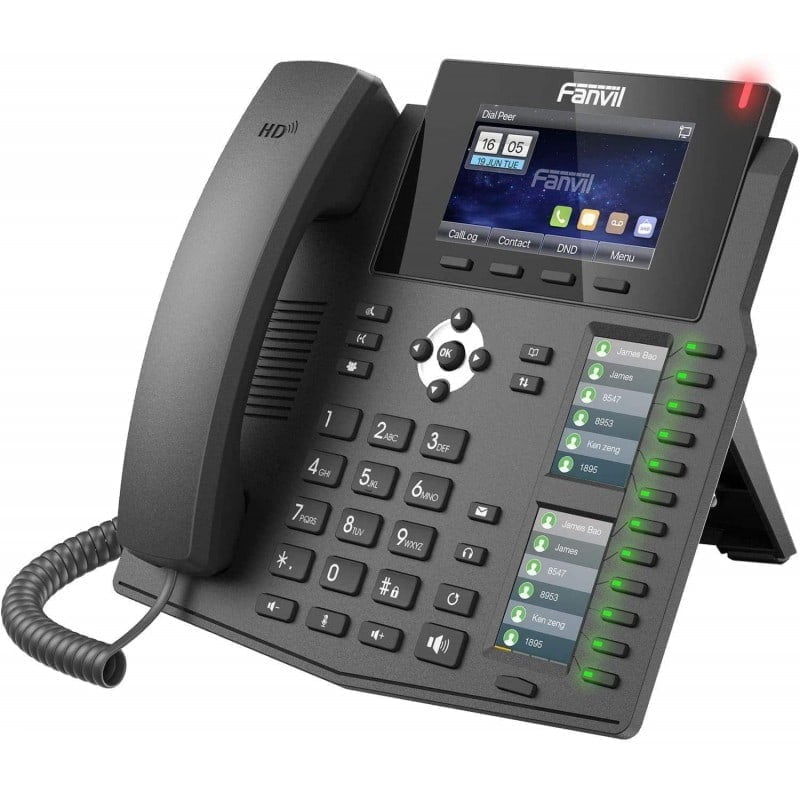

Fanvil X6 Executive IP-Phone with Colour Screens & 60 DSS Keys

Fanvil X6 – Technical Specifications

Generic

• 6 SIP Lines (standard). Up to 20 SIP lines available with firmware upgrade (2019).
• HD Voice
• PoE Enabled
• 3 LCDs (Main + DSS)
• Handset(HS) / Hands-free(HF) / Headphone(HP) mode
• Intelligent DSS Keys
• Desktop / Wall-mount installation
• Optional External Power Supply
• Economical and Environmental friendly package
• Industrial Standard Certifications: CE/FCC

Call Features

• Call out / answer / reject
• Mute / Unmute (microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (depending on server)
• Redial
• Do-Not-Disturb (per line / per phone)
• Auto-Answering (per line)
• Voice Message (on server)
• Local 3-way Conference
• Hot Line
• Hot-Desking

Highlights

• 2 DSS Key-mapping LCD – 12 DSS keys corresponded to the LCD display to provide dynamic DSS/BLF functions up to five pages at virtualised total 60 DSS keys.
• Gigabit Ethernet – 10/100/1000Mbps Ethernet with PoE enabled.
• Economic and Environmental Friendly design with Elegant Housing, with high-resolution TFT colour display, delivering a rich visual experience.
• High Interoperability – Compatible with major platforms: 3CX, Asterisk, Broadsoft, Elastix, Zycoo, etc.

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
• Wideband ADC/DAC 16KHz Sampling
• Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR,iLBC
• Wideband CODEC: G.722, AMR-WB,
• Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
• IP Configuration: Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP (Basic Unencrypted) / OpenVPN
• VLAN
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• PPPoE
• 802.1x
• L2TP (Basic Unencrypted)
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR069

RFCs

• 354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2
  661/2833/2976/3261/3262/3263/3264/3265/3268/3311/3
  489/3711/4346/4566/5630/
  5865

Deployment & Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• Main LCD x1: 4.3 inch (480×272) LCD colour screen
• DSS Key-mapping LCD x2: 2.4 inch (240×320) LCD colour screen
• Keypad: 46 keys, including
  – 4 Soft-keys
  – 8 Function keys
  – 4+1 Navigation keys + OK
  – 12 Standard Phone Digits keys
  – 3 Volume Control keys, Up/Down/Mute (Microphone)
  – 1 Hands-free key
  – 12 DSS Keys with tri-colour LED
  – 1 Page-Switch (PS) key
• HD Hands-free Speaker (0 ~ 7KHz) x1
• HD Hands-free Microphone (0 ~ 7KHz) x1
• HD Handset (RJ9) x1
• USB Port x1 (Connect with BT USB dongle)
• Support Bluetooth headset (Through USB Dongle)
• Support Plantronics Wireless headset (Through Plantronics APD-80 EHS Cable)
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• RJ9 Phone Jacket x2: Handset x1, Headphone x1
• RJ45 Ethernet Jacket x2: Network x1 , PC x1 (Bridged to Network)
• Main Chipset: Broadcom
• DC Power Input: 12V/1A
• Power Consumption: Idle – ~ W, Peak – ~W
• Working Temperature: 0 ~ 40℃
• Working Humidity: 10 ~ 65%
• Dual-Functional Back Rack x1: Desktop Stand
• Colour: Black
• Package Dimensions: 315x270x65mm (W x H x L)
