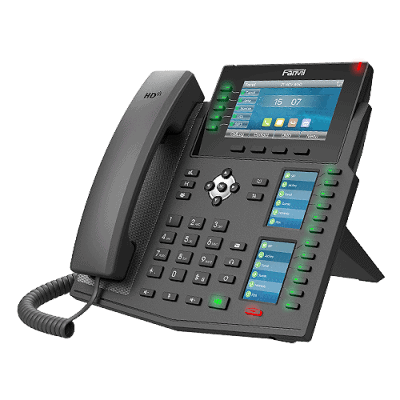

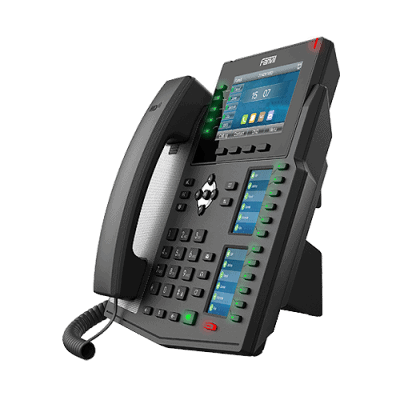

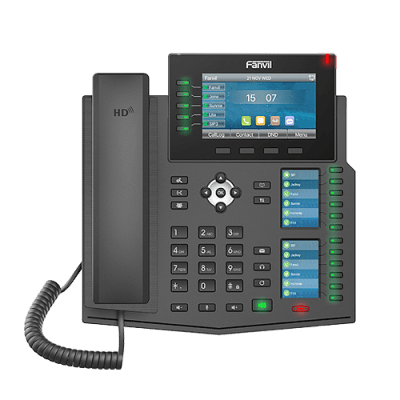

Fanvil X6U 6 line Ultra-Elegant Gigabit Triple Color Screen Phone

Fanvil X6U – Technical Specifications

Generic

• 20 SIP lines
• HD Voice
• Support receiving Video Call
• PoE Enabled
• 3 LCDs (Main + DSS)
• Handset / Hands-free / Headphone mode
• Intelligent DSS Keys
• Desktop Stand / Wall-mounted (need an additional wall hanging part)
• Optional External Power Supply

Phone Functions

• Local Phonebook (2000 entries)
• Remote Phonebook (XML/LDAP, 2000 entries)
• Call logs (In/Out/Missed, 1000 entries)
• Black/White List Call Filter
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronisation
• Built-in Bluetooth 2.1: Support Bluetooth headset
• Support WiFi Dongle
• Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Flash Drive or Server)
• Action URL/Active URI
• uaCSTA

Call Functions

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (With server)
• 3-way Conference
• Hot Line
• Hot desking

Video

• Video codec: H.264
• Video call resolution: QCIF / CIF / VGA

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response)
• HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
• Wideband Codec: G.722, AMR-WB, Opus
• Full-Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD)/Comfort Noise Generation (CNG)/Background Noise Estimation (BNE)/Noise Reduction (NR)
• Packet loss concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-band – DTMF-Relay (RFC2833)/SIP INFO

Network

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode: IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment & Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• Main LCD x1: 4.3 inch (480×272) LCD colour screen
• DSS Key-mapping LCD x2: 2.4 inch (240×320) LCD colour screen
• Keypad: 51 keys, including
  – 5 Line Keys (with LED Indicator Light)
  – 4 Soft-keys
  – 8 function keys (hold, call forward, conference, phonebook, call log, MWI, headset, redial)
  – 4 Navigation keys
  – 12 Standard Phone Digits keys
  – 3 Volume Control keys (Up/Down/Mute (Microphone))
  – 12 DSS Keys (With LED Indicator Light)
  – 1 Page-Switch (PS) key (With LED Indicator Light)
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Back Rack x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• USB2.0 Port x1 (Connect with USB dongle or flash driver)
• Safety keyhole x1
• DC Power Input: 5V/2A
• Power Consumption (PoE): 1.7W~10.46W
• Power Consumption (Adapter): 1.38W~9.13W
• Working Temperature: 0 ~ 45℃
• Working Humidity: 10 ~ 95%
• Installation:
  – Desktop Stand
  – Wall-Mounted (need an additional wall hanging part)
• Colour: Black
• Device Dimensions:
  – Desktop Stand (Angle 1): 239 x 199.3 x 185.8mm
  – Desktop Stand (Angle 2): 239 x 188.5 x 195.6mm
  – Wall-Mounted: 239 x 119.2 x 233.6mm
• Gift Box Dimensions: 335 x 243 x 84mm
• Outer CTN Dimensions: 506 x 440 x 356mm (10 PCS)
