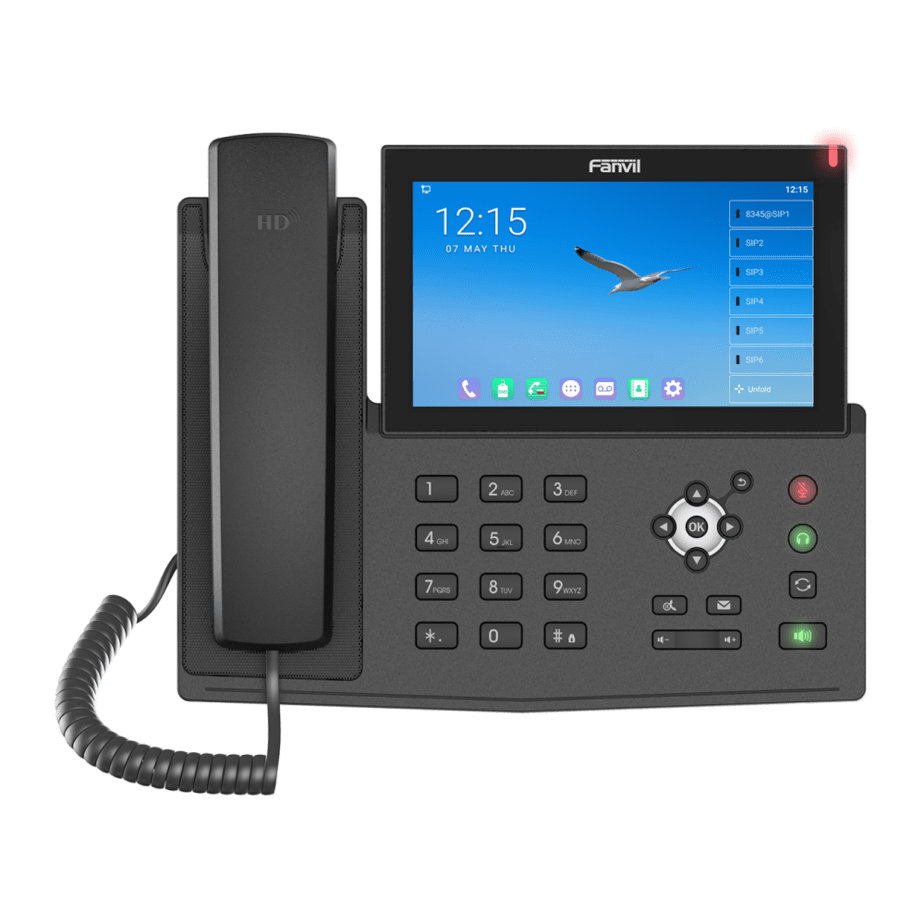

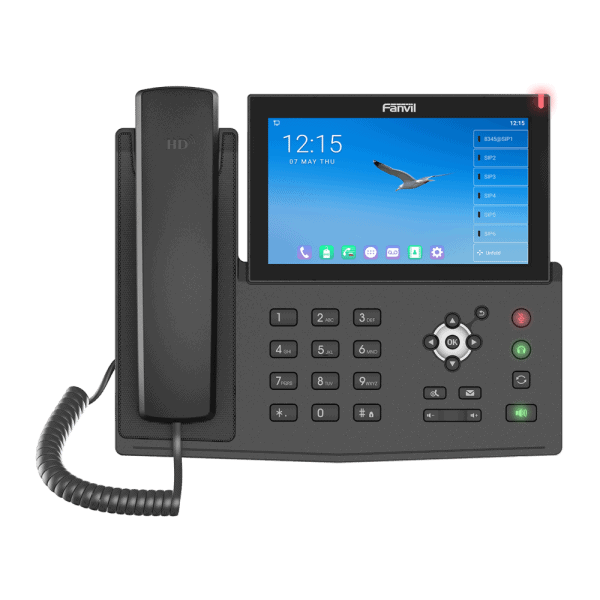

Fanvil X7A Android VoIP Phone, 7-Inch Color Touch Screen, 20 SIP Lines, 802.11ac Wi-Fi, Dual-Port Gigabit Ethernet, Power Adapter Not Included

Fanvil X7A- Technical Specifications

Generic

• 20 SIP Lines
• HD Voice
• Support receiving Video call
• PoE Enabled
• 7-inch (1024×600) color touch screen
• Handset / Hands-free / Headset mode
• Intelligent DSS Keys(Virtual buttons)
• Optional External Power SupplyDisplay

Phone Features

• Android 9.0 OS
• Local Phonebook (2000 entries)
• Remote Phonebook (XML/LDAP, 2000 entries)
• Call logs (In/out/missed, 1000 entries)
• Black/White List Call Filter
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Built-in Bluetooth 4.2: Support Bluetooth headset
• Built-in Wi-Fi 2.4GHz, 802.11 b/g/n
• 5GHz, 802.11 a/n/ac
• Support Recording
• Action URL / Active URI
• uaCSTA

Call Features

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial Do-Not-Disturb
• Auto-Answering
• Voice Message (On server)
• 3-way Conference
• Hot Line
• Hot desking

Video

• Wideband codec: G.722
• Narrowband codec: G.711(A/μ), G.723.1,
• G.729AB, iLBC, AMR
• DTMF: In-band, Out-of-band(RFC 2833) and
• SIP INFO
• Full-duplex hands-free speaker phone with
• AEC (Max filter length – 128ms)
• Voice Activity Detection (VAD)
• Comfort Noise Generation (CNG)
• Adaptive jitter buffer
• Packet loss concealment (PLC)
• Audio format: WAV/MP3/OGG
• Frame rate selection: 5~30fps
• Video from remote site can be displayed in full screen

Deployment And Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web Management Portal
• Supports the third party communication APP
• Supports Web, Telnet
• Supports encrypted configuration files download with AES
• Supports Web upgrade
• Supports factory reset data

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
• HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.729AB, iLBC
• Wideband Codec: G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Network

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode:IPv4
• IP Configuration: Static / DHCP
• Network Access Control: 802.1x
• VPN: OpenVPN (Requires third-party app support)
• VLAN
• LLDP
• CDP
• QoS

Physical Features

• LCD x1:7 inch (1024×600) color-screen LCD
• Keypad: 26 keys, including
• 5 Function keys (Hold, MWI,Mute,Headset, Redial)
• 4 Navigation keys
• 1 OK key
• 1 Return key
• 12 Standard Phone Digits keys
• 2 Volume Control keys, Up/Down
• 1 Hands-free key
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Back Rack x1
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• USB2.0 Port x1: Standard A, Connect with Flash Driver
• Safety keyhole x1
• Power: 5V/2A or PoE
• Power Consumption (PoE): 1.596~11.86W
• Power Consumption (Adapter): 0.907~9.38W
• Working Temperature: 0~45℃
• Working Humidity: 10~95%
• Installation: Desktop Stand
• Color: Black
• Device Dimensions
• Desktop Stand (Angles 1): 268x185x189mm
• Desktop Stand (Angles 2): 268x201x168mm
• Gift Box Dimensions: 304x297x66mm
• Outer CTN Dimensions: 616x358x329mm (10 PCS)
