Grandstream GWN7664LR Long-Range Outdoor Wi-Fi 6 Access Point

Grandstream
Compare

Grandstream GWN7605LR Outdoor Long Range Dual Band Access Point Key Features

  • 2x Gigabit Wireline ports and 1.27Gbps Wireless throughput
  • Dual-Band 2×2:2 MU-MIMO technology
  • Auto power adjustment upon auto detection of PoE or PoE+
  • GWN7605LR transmits up to 250 Meter Wireless Range
  • It Supports over 100 Concurrent Wi-Fi client devices

$190.00

Compare

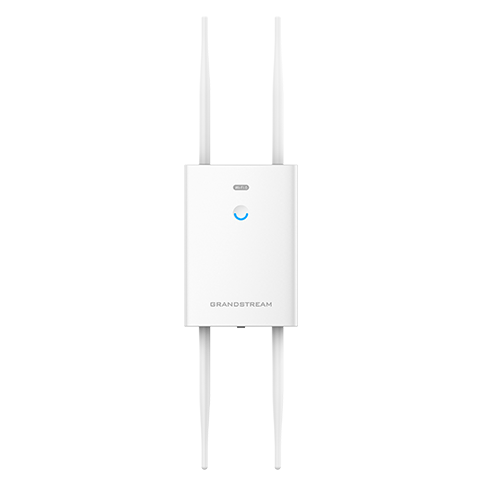

Grandstream GWN7664LR Long-Range Outdoor Wi-Fi 6 Access Point

Grandstream GWN7664LR Outdoor  Access Point, Long Range Dual Band Access Point is an outdoor dual-band access point that provides long-range coverage and also supports indoor and outdoor use. With its innovative antenna and weatherproof design, GWN7664LR long-range dual-band access point has 4×4:4 MUMIMO dual-frequency technology and high-quality antenna design, which can extend the range to about 300 meters. The product web user interface for easy management of locally deployed Wi-Fi hotspots.

The GWN7664LR  outdoor long rang access point also supports trendy local and cloud WiFi management platforms GWN. Cloud and GWN Manager. With market-leading advanced QoS, fast roaming, mesh network, interconnect gateway technology, supporting more than 100 concurrent clients, and two Gigabit network ports, GWN76064LR is an ideal WiFi hotspot for jitter-sensitive real-time applications. Low latency (for example, voice/video transmission through WiFi devices and applications) in scenarios with ordinary low-density users.

Grandstream GWN7664LR Long-Range Outdoor Wi-Fi 6 Access Point Grandstream GWN7664LR

Grandstream GWN7664LR Long-Range Outdoor Wi-Fi 6 Access Point Key Features

  • 3.55Gbps aggregate wireless throughput, 2.5Gbps aggregate wired throughout
  • Dual-band 4×4:4 MU- MIMO with DL/UL OFDMA technology
  • Auto power adjustment upon auto detection of PoE or PoE+
  • GWN7664LR transmits up to 300 Meter Wireless Range
  • It Supports over 100 Concurrent Wi-Fi client devices
  • Anti-Hacking secure boot and critical data/control lockdown
  • Extended QoS to achieve real-time performance for low-latency applications
  • The integrated controller manages up to 50 local AP GWN; GWN. Cloud provides unlimited hotspot management, and GWN Manager provides local software hotspot management.





SKU: GWN7664LR-3 Categories: , , , Tag:

Grandstream GWN7664LR Technical Specifications

brandGrandstream
Wi-Fi StandardsIEEE 802.11 b/g/n/ac/ax
Antennas4 dual band external antennas

2.4GHz, gain 3.5dBi

5 GHz, gain 3.5dBi

Wi-Fi Data Rates5G:

IEEE 802.11ax: 8 Mbps to 2402 Mbps IEEE

802.11ac: 6.5 Mbps to 1733 Mbps IEEE

802.11n: 6.5Mbps to 600Mbps

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G:

IEEE 802.11ax: 8 Mbps to 1147 Mbps IEEE

802.11n: 6.5Mbps to 600Mbps IEEE

802.11b: 1, 2, 5.5, 11 Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands2.4GHz radio: 2412 – 2484 MHz

5GHz radio: 5180 – 5825 MHz

*Not all frequency bands can be used in all regions.

Channel Bandwidth2.4G: 20 and 40 MHz (x4)

5G: 20, 40 and 80 MHz (x4)

System SecurityWEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO4×4:4 2.4GHz, 4×4:4 5GHz
Coverage RangeUp to 300 meters

*Coverage range can vary based on environment

Maximum TX Power5G: 25dBm

2.4G: 26dBm

*Maximum power varies by country, frequency band, and MCS rate

Receiver Sensitivity2.4G

802.11b: -99dBm@1Mbps, -91dBm@11Mbps;

802.11g: -94dBm @6Mbps, -78dBm@54Mbps;

802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;

802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11

5G

802.11a: -95dBm @6Mbps, -77dBm @54Mbps;

802.11n: 20MHz: -74dBm @MCS7; 802.11 n 40MHz: -71dBm @MCS7

802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;

802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11

SSIDs32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients750+
Network Interfaces1x 1G Port and 1x 2.5G Port, support 2.5Gbps aggregate wired throughout
Auxiliary Ports1x Reset Pinhole
MountingWall mount or pole mount, kits included
LEDs1 tri-color LEDs for device tracking and status indication
Network ProtocolsIPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS802.11e/WMM, VLAN, TOS
Network ManagementEmbedded controller can manage up to 50 local GWN APs

GWN.Cloud offers a free cloud management platform for unlimited GWN APs

GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy EfficiencyPoE 802.3af/ 802.3at;

Maximum Power Consumption: 18W

EnvironmentalOperation:-30°Cto 60°C

Storage: -30°C to 60°C

Humidity: 10% to 90% Non-condensing

PhysicalUnit Dimension: 562.3mm(L)x140mm(W)x44.9mm(H);

Unit + Mounting Kits Dimension: 562.3mm(L)x140mm(W)x66.9mm(H);

Entire Package Dimension: 260mm(L)x218.5mm(W)x108mm(H);

Package ContentGWN7664LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide
Weatherproof GradeIP66-level weatherproof capability when installed vertically
ComplianceFCC, CE, RCM, IC, UKCA
