- Network Switch, network switch 24 gigabit, network switch 24 port, Network switch 24 port gigabit, network switch poe
Grandstream GWN7803P Enterprise Layer 2+ Managed PoE Network Switch
Network Switch, network switch 24 gigabit, network switch 24 port, Network switch 24 port gigabit, network switch poeGrandstream GWN7803P Enterprise Layer 2+ Managed PoE Network Switch
- 24 POE ports
- Dynamic PoE/PoE+ power allocation per port
- Quaternary binding of IP, MAC, VLAN & port
- Security features include ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Managed via GWN. Cloud and GWN Manager
- Built-in QoS prioritizes network traffic
SKU: GWN7803P - Network Switch, network switch 18 port, network switch poe, ONV Network Switch, onv switch 16 port, power strip with usb port
ONV-H1016PL 18 Port Unmanaged Poe Switch for Small & Medium Businesses
Network Switch, network switch 18 port, network switch poe, ONV Network Switch, onv switch 16 port, power strip with usb portONV-H1016PL 18 Port Unmanaged Poe Switch for Small & Medium Businesses
Got A Question? Contact Us.
We Offer Good Discount Expert Technical Support
Key feature
- 16*10/100M Poe ports,802.3af/at+2*10/100/1000M RJ45 ports
- Max power per Poe port:30W.
- Port 9-16 support 10M@long transmission distance 250 meters
- Supply power with the spare line pair
- Built-in power supply
ONV-H1024PL Datasheet (PDF)
ONV Warranty Terms (PDF)
H1024PL Application (JPEG)SKU: NS1000 - Network Switch, network switch 24 gigabit, onv 24gb switch
ONV-H1024PL Gigabit Uplink PoE Switch for High Speed, Rack Mountable
Network Switch, network switch 24 gigabit, onv 24gb switchONV-H1024PL Gigabit Uplink PoE Switch for High Speed, Rack Mountable
Got A Question? Contact Us. Exclusive Offers
Great Deals And Huge Savings Expert Technical Support
Key feature
- 16*10/100M Poe ports,802.3af/at+2*10/100/1000M RJ45 ports
- Max power per Poe port:30W.
- Port 9-16 support 10M@long transmission distance 250 meters
- Supply power with the spare line pair
- Built-in power supply
SKU: H1024PL
Network Switch, network switch 24 gigabit, network switch 24 port, Network switch 24 port gigabit, network switch poe
Compare
Grandstream GWN7803P Enterprise Layer 2+ Managed PoE Network Switch
- 24 POE ports
- Dynamic PoE/PoE+ power allocation per port
- Quaternary binding of IP, MAC, VLAN & port
- Security features include ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Managed via GWN. Cloud and GWN Manager
- Built-in QoS prioritizes network traffic
$300.00
$489.50 for 3 item(s)

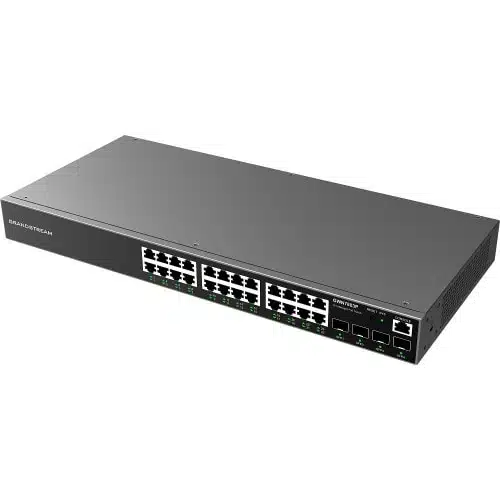

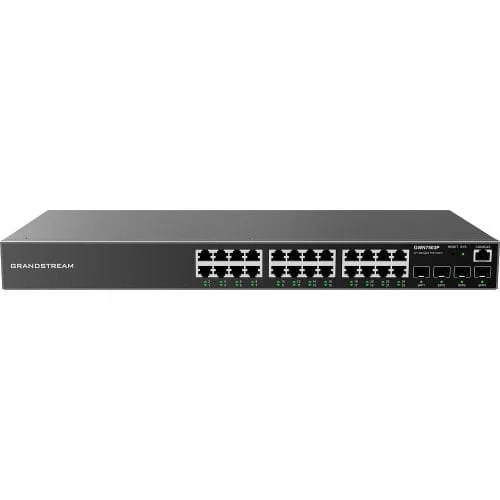

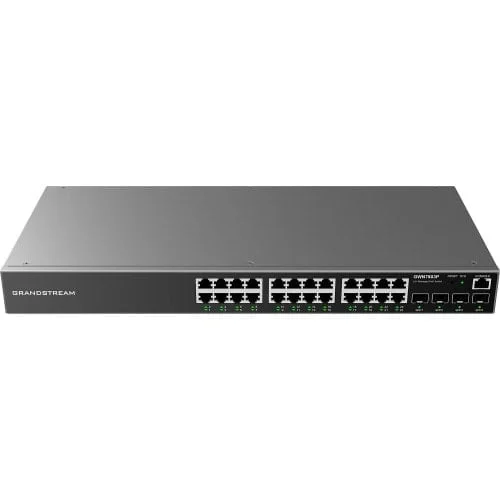

Grandstream GWN7803P Enterprise 24-Port Gigabit L2+ Managed PoE Switch: Support dynamic PoE/PoE+ power allocation per port | 24x Gigabit Ethernet Ports with PoE/PoE+

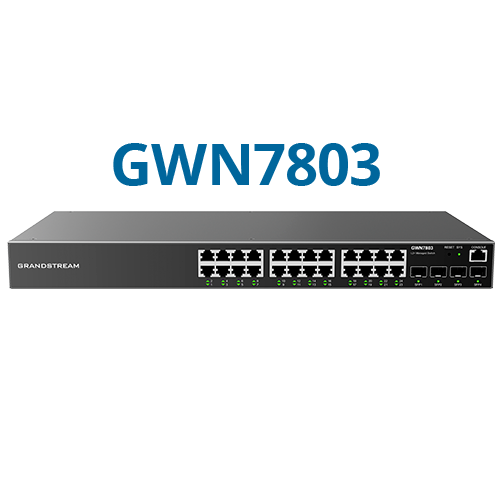

Grandstream GWN7803 Network Series are Layer 2+ managed network switches that gives small-to-medium businesses the opportunity to build high performance, and smart business networks. It supports (IEEE 802.3af/at), 4x Gigabit SFP Ports and advanced VLAN for flexible and sophisticated traffic segmentation. The advanced QoS for prioritization of network traffic and IGMP Snooping for network performance optimization secures against potential attacks.
The series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. PoE models provide smart dynamic PoE output to power IP gadgets, Wi-Fi access points and other PoE endpoints. The Managed Network Switch GWN7800 series can be managed in a number of ways, including the local web user interface of the GWN7800 series switch. This enterprise-grade GWN7800 series is the best managed network switches for all businesses.
Features Grandstream GWN7803P Enterprise 24-Port Gigabit L2+ Managed PoE Switch:
- 1x Console Port
- IP, MAC, VLAN & port
- 28x green LEDs for data ports
- 24x yellow-color LEDs for PoE ports
- Desktop, wall-mount, or rack-mount
- 24x Gigabit Ethernet Ports with PoE/PoE+
- Support (IEEE 802.3af/at), 4x Gigabit SFP Ports
- DHCP server, DHCP relay, Option 82, 60,160 and 43
- Support dynamic PoE/PoE+ power allocation per port
- 1x tri-color LED for device tracking and status indication,
Weight | 2.7 kg |
---|---|
Dimensions | 440 × 200 × 44 mm |
Brands | |
Color | |
Number of Ports | 24-Ports |
Brand | Grandstream |
---|
- Model: GWN7803P
- Network Protocol:
- IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z,
IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
- IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z,
- Gigabit Ethernet Ports: 24
- Gigabit SFP Ports: 4
- Console: 1
- Number of PoE Ports: 24
- Integrated Power Supply: 400W
- Max Output Power per PoE Port: 30W
- Max Total PoE Output Power: 360W
- PoE Standards: IEEE 802.3af/at
- Auxiliary Ports:
- 1x Reset Pinhole
- Forwarding Mode: Store-and-forward
- Total non-blocking throughput: 28Gbps
- Switching Capability: 56Gbps
- Forwarding Rate:
- 41.66M packets per second
- Packet Buffer: 4.1MB
- Switching:
- 8K static, dynamic and filtering MAC addresses
- 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
- VLAN virtual interface
- GVRP
- 8 link aggregation groups
- Spanning tree, 64 instances for STP/RTSP/MSTP
- Multicast: IGMP Snooping, MLD Snooping, MVR
- Mounting:
- Desktop
- Wall-Mount
- or rack-mount (rack-mount brackets included)
- LEDs:
- 1x tri-color LED for device tracking and status indication
- 28x green LEDs for data ports
- 24x yellow-color LEDs for PoE ports
- Package Content:
- GWN7803P Switch
- 1x 1.2m(10A) AC Cable
- 1x Ground Cable
- Rack-mounting Standard Brackets
- 4x Rubber Feet
- 2x Lug Ear
