Grandstream HT814 Analog FXS IP Gateway – 4 Port + NAT Router: Experience Enhanced Connectivity | Supports 2 SIP Profiles Through 4 FXS Ports

Grandstream

  • Supports 3-way voice conferencing
  • Supports T.38 Fax for creating Fax-over-IP
  • Supports a wide range of caller ID formats
  • Supports 2 SIP profiles through 4 FXS ports and dual Gigabit ports
  • Automated provisioning options include TR-069 and XML config files
  • TLS and SRTP security encryption technology to protect calls and accounts
  • Includes a built-in NAT router which can handle routing speeds up to 100MBps

Grandstream HT814_Admin_Guide (PDF)
Grandstream HT814_User_Guide (PDF)
Grandstream HT814 QIG-1 Installation Guide (PDF)
Grandstream Datasheet_HT814_English (PDF)

$91.00

Compare
$1,059.49 for 3 item(s)

Grandstream HT814 Analog FXS IP Gateway – 4 Port + NAT Router: Experience Enhanced Connectivity | Supports 2 SIP Profiles Through 4 FXS Ports

This New Grandstream HT814 Communications Solution is empowering Connectivity with Its Analog FXS IP Gateway – 4 Port + NAT Router. Featuring four FXS ports and a built-in NAT router, the HT814 enables organizations to bridge the gap between analog and IP-based communication systems effortlessly.

With its advanced features and intuitive interface, the HT814 simplifies the transition to modern communication technologies, allowing businesses to optimize productivity and collaboration. Experience the power of seamless connectivity with the Grandstream HT814.

Features of Grandstream HT812 Analog FXS IP Gateway – 2 Port + NAT Router:

  • Supports 3-way voice conferencing
  • Supports T.38 Fax for creating Fax-over-IP
  • Supports a wide range of caller ID formats
  • Supports 2 SIP profiles through 4 FXS ports and dual Gigabit ports
  • Automated provisioning options include TR-069 and XML config files
  • TLS and SRTP security encryption technology to protect calls and accounts
  • Includes a built-in NAT router which can handle routing speeds up to 100MBps
  • Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
  • Failover SIP server automatically switches to secondary server if main server loses connection
Brands

Color

Network connection type

Grandstream HT814 – Specifications

Interfaces

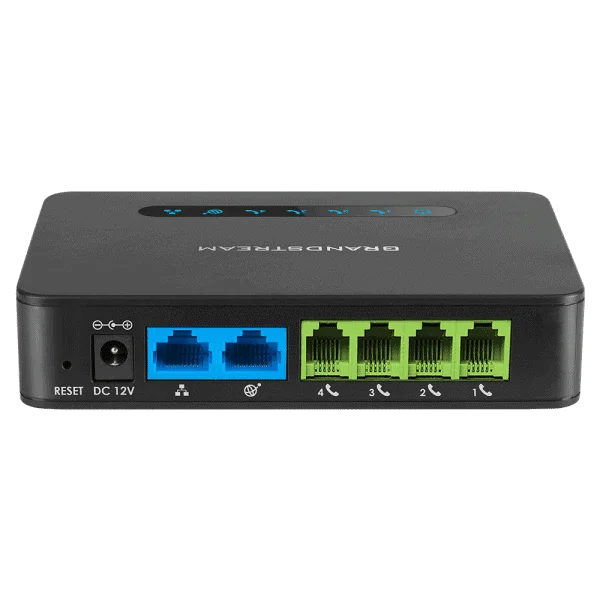

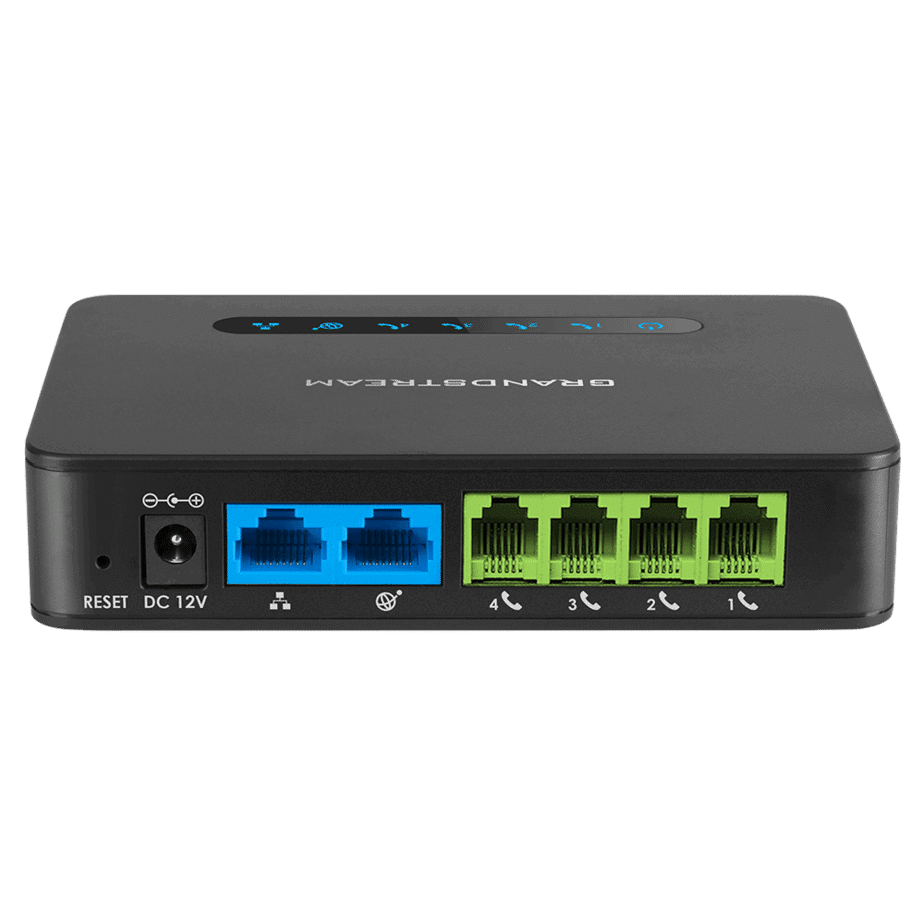

  • Telephone Interfaces Four(4) RJ11 FXS ports
  • Network Interfaces Two (2) 10/100/1000Mbps RJ45 ports

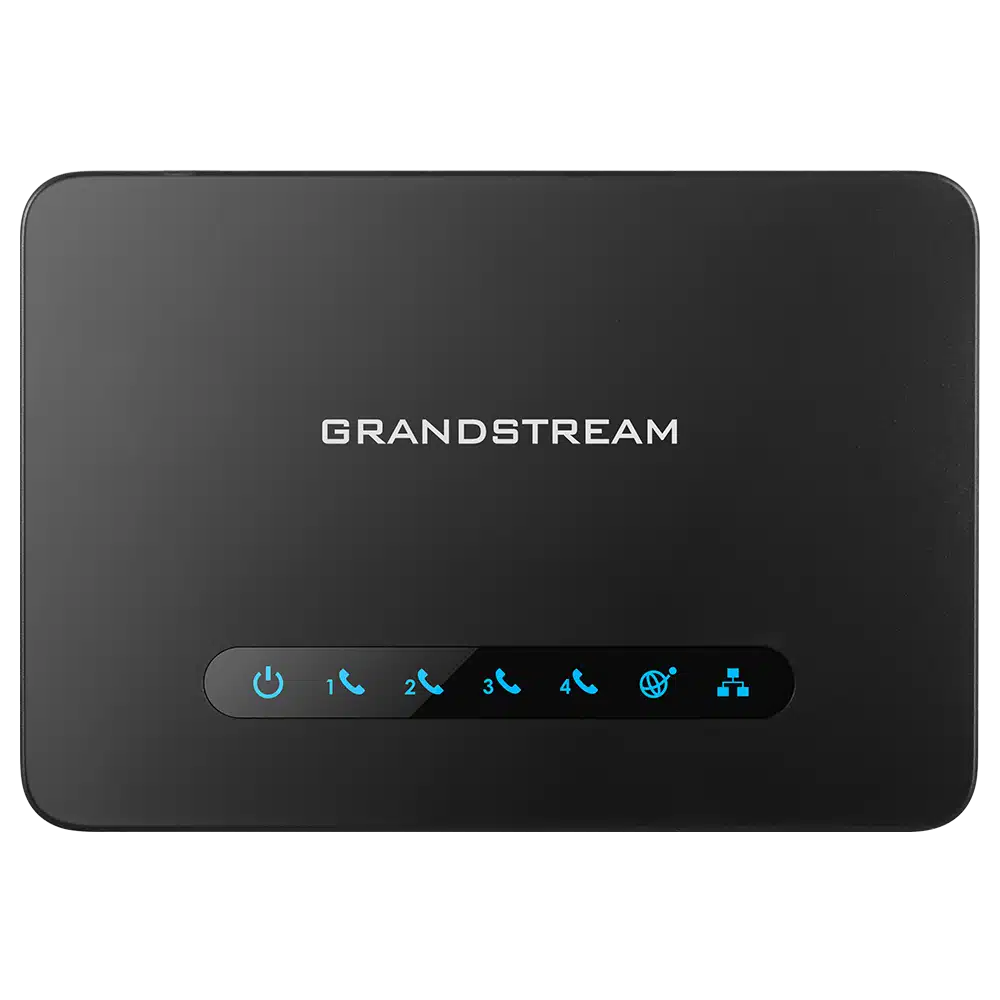

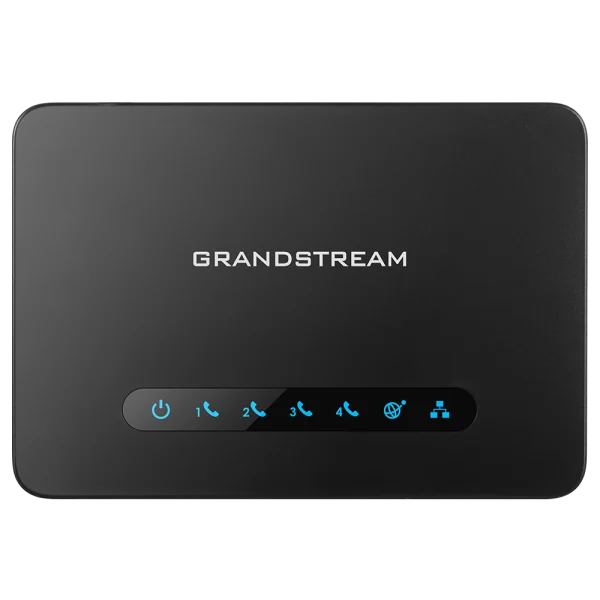

  • LED Indicators POWER, LAN, WAN, PHONE1, PHONE2, PHONE3, PHONE4
  • Factory Reset Button Yes

Voice, Fax, Modem

  • Telephony Features Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
  • Voice Codecs G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
  • Fax Over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
  • Short/Long Haul Ring Load 2 REN, up to 1km on 24AWG line.
  • Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
  • Disconnect Methods Busy Tone, Polarity Reversal/Wink, Loop Current

Signaling

  • Network Protocols TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
  • QoS Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)
  • DTMF Method In-audio, RFC2833 and/or SIP INFO
  • Provisioning and Control HTTP, HTTPS, TELNET, TFTP, TR-069 , secure and automated provisioning using AES encryption, syslog

Security

  • Media SRTP
  • Control TLS/SIPS/HTTPS
  • Management Syslog support, telnet, remote management using web browser

Physical

  • Universal Power Supply Input: 100-240VAC, 50-60Hz Output: 12V/1.0A
  • Environmental
    Operational: 32º – 104ºF or 0º – 40ºC
    Storage: 14º – 140ºF or -10º – 60ºC
    Humidity: 10 – 90% Non-condensing
  • Dimension: 28.5 x 130 x 90 mm (H x W x D)
