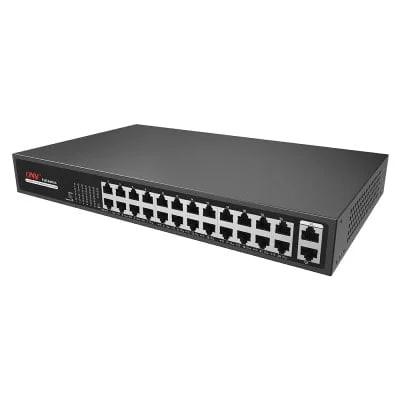

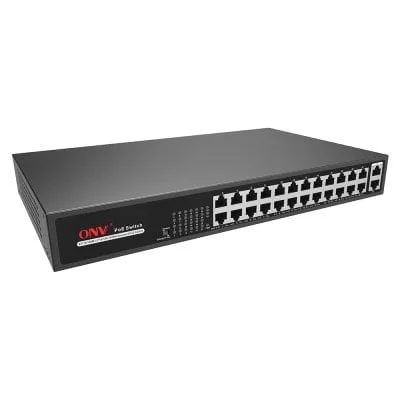

ONV-H1024PL Gigabit Uplink PoE Switch for High Speed, Rack Mountable
10 in stock
Key feature
- 16*10/100M Poe ports,802.3af/at+2*10/100/1000M RJ45 ports
- Max power per Poe port:30W.
- Port 9-16 support [email protected] transmission distance 250 meters
- Supply power with the spare line pair
- Built-in power supply
$155.00
10 in stock
The ONV-H1024PL is a Gigabit Uplink PoE Switch
The ONV-H1024PL is a Gigabit uplink PoE switch that provides up to 24 ports of 10/100/1000Base-T Ethernet with 4 ports of SFP+ 10 Gigabit Ethernet uplinks. The switch also supports 24V PoE or 48V PoE++ with a maximum power budget of 250W. The ONV-H1024PL is an excellent choice for expanding your network with high-speed 10 Gigabit Ethernet uplinks while also providing power to devices such as IP cameras, VoIP phones, and wireless access points.
10/100M access, Gigabit uplink
- Provides 24*10/100M PoE ports and 2*10/100/1000M RJ45 ports for flexible networking and meets the networking requirements of various scenarios.
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Stable and reliable, easy to use
- CCC,CE, FCC, RoHS.
- Support desktop and 1U-19 inch cabinet installation.
- Plug and play, no configuration, simple and convenient.
- Low power consumption, galvanized steel casing, no fan.
- The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.
- Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
- With function switch, port 17-24 can support 10M/250 meters long distance transmission mode when one key is opened.
-
-
Network Switch, network switch 18 port, network switch poe, ONV Network Switch, onv switch 16 port, power strip with usb port
ONV-H1016PL 18 Port Unmanaged Poe Switch for Small & Medium Businesses
Network Switch, network switch 18 port, network switch poe, ONV Network Switch, onv switch 16 port, power strip with usb portONV-H1016PL 18 Port Unmanaged Poe Switch for Small & Medium Businesses
Key feature
- 16*10/100M Poe ports,802.3af/at+2*10/100/1000M RJ45 ports
- Max power per Poe port:30W.
- Port 9-16 support [email protected] transmission distance 250 meters
- Supply power with the spare line pair
- Built-in power supply
ONV-H1024PL Datasheet (PDF)
ONV Warranty Terms (PDF)
H1024PL Application (JPEG)
SKU: NS1000 -
Network Switch, network switch 16 gigabit, network switch 18 port, network switch poe, onv 16gb switch, ONV Network Switch, onv switch 18 port
ONV-H3016PF 18 Port Unmanaged Full Gigabit 18-port PoE Switch
Network Switch, network switch 16 gigabit, network switch 18 port, network switch poe, onv 16gb switch, ONV Network Switch, onv switch 18 portONV-H3016PF 18 Port Unmanaged Full Gigabit 18-port PoE Switch
Key feature
- 16*10/100M Poe ports,802.3af/at+2*10/100/1000M RJ45 ports
- Max power per Poe port:30W.
- Port 9-16 support [email protected] transmission distance 250 meters
- Built-in power supply
- Fiber module not included
ONV-H3016PF Datasheet (PDF)
ONV Warranty Terms (PDF)
ONV-H3016PF Application (JPEG)
SKU: NS103 -
Network Switch, network switch 24 gigabit, network switch 26 port, network switch poe, onv 16gb switch, ONV Network Switch
ONV-H3024PF 26Port Unmanaged Full Gigabit 26-port PoE Switch
Network Switch, network switch 24 gigabit, network switch 26 port, network switch poe, onv 16gb switch, ONV Network SwitchONV-H3024PF 26Port Unmanaged Full Gigabit 26-port PoE Switch
Key feature
- 24*10/100M Poe ports,802.3af/at+2*10/100/1000M RJ45 ports
- Max power per Poe port:30W.
- Built-in power supply
- Fiber module not included
SKU: NS1004 -
Network Switch, network switch 10 port, network switch 8 gigabit, onv 8gb switch, ONV Network Switch
ONV-H3108P Full Gigabit 10-Port Poe Switch
Network Switch, network switch 10 port, network switch 8 gigabit, onv 8gb switch, ONV Network SwitchONV-H3108P Full Gigabit 10-Port Poe Switch
Key feature
- 8*10/100M Poe ports,802.3af/at+2*10/100/1000M RJ45 ports
- Max power per Poe port:30W.
- Port 1-8 support [email protected] transmission distance 120 meters
- Supply power with the spare line pair
- Port 1-8 support [email protected] transmission distance 250 meters and VLAN optional
- Built-in power supply
ONV-H3108PL Datasheet (PDF)
ONV Warranty Terms (PDF)
ONV-H3108PS Application (JPEG)
SKU: NS1002 -
network switch 24 gigabit, network switch 24 port
Full Gigabit 26-port Unmanaged PoE Switch Model: ONV-POE33024PFB
-1%network switch 24 gigabit, network switch 24 portFull Gigabit 26-port Unmanaged PoE Switch Model: ONV-POE33024PFB
Product Key Feautures
Unmanaged PoE fiber switch with 24*10/100/1000M RJ45 ports and 2*1000M uplink SFP fiber slot ports, port 1-24 can support IEEE802.3af/at PoE standard, Built-in 250W power supply. Support 1U/19 inch rack installation.
Downloads Documents & Manuals
SKU: ONV-POE33024PFB
Weight | 2.5 kg |
---|---|
Dimensions | 330 × 204 × 44 mm |
Color | |
Brands | |
Certification | CCC, CE, FCC, R®HS |
Number of Ports | 24-Ports |
TECHNICAL SPECIFICATION
Model | ONV-H1016PL | ONV-H1024PL |
Interface Characteristics | ||
Fixed Port | 16*10/100Base-TX PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data) |
24*10/100Base-TX PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data) |
Ethernet Port | Port 1-16 can support 10/100Base-TX, Port 17-18 can support 10/100/1000Base-T auto-detection, full/half-duplex MDI/MDI-X auto-sensing | Port 1-24 can support 10/100Base-TX, Port 25-26 can support 10/100/1000Base-T auto-detection, full/half-duplex MDI/MDI-X auto-sensing |
Functional Switch | After opening, port 9-16 can support 10M/250 meters long distance transmission. | After opening, port 17-24 can support 10M/250 meters long distance transmission. |
Note: when the switch state changes, it must be restarted before the PoE switch function can take effect | ||
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤250 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
Chip Parameter | ||
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
|
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 14.8Gbps (Non-blocking) | |
Forwarding | 5.36Mpps | 6.55Mpps |
MAC | 16K | |
Buffer Memory | 4M | |
Jumbo Frame | 9.6K | |
LED Indicator | Power:PWR (green), network : Link(yellow),PoE: PoE (green) | |
PoE & Power | ||
PoE Port | Port 1 to 16 | Port 1 to 24 |
Power Supply Pin | Default 1/2(+), 3/6(-), optional 4/5(+), 7/8(-) | |
Max Power Per Port | 30W, IEEE802.3af/at | |
Total PWR / Input Voltage | 200W (AC100-240V) | 250W (AC100-240V) |
Power Consumption | Standby<15W, Full load <240W | Standby <20W, Full load <250W |
Power Supply | Built-in switching power supply, AC100~240V 50-60Hz 4.1A | |
Physical Parameter | ||
Operation TEMP / Humidity | -20~+55°C;5%~90% RH Non condensing | |
Storage TEMP / Humidity | -40~+75°C;5%~95% RH Non condensing | |
Dimension (L*W*H) | 270*181*44.5mm | 330*204*44mm |
Net /Gross Weight | <1.7kg / <2.2kg | <2.3kg / <3kg |
Installation | Desktop, wall mounted | |
Certification & Warranty | ||
Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 | |
Certification | CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS | |
Warranty | 1 year, lifelong maintenance. |
