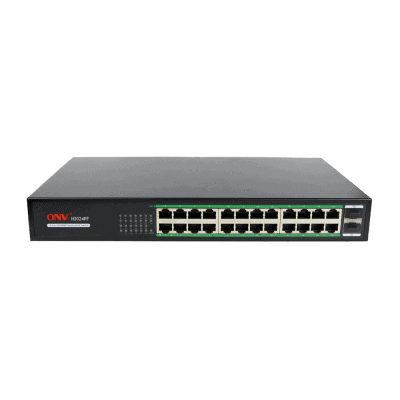

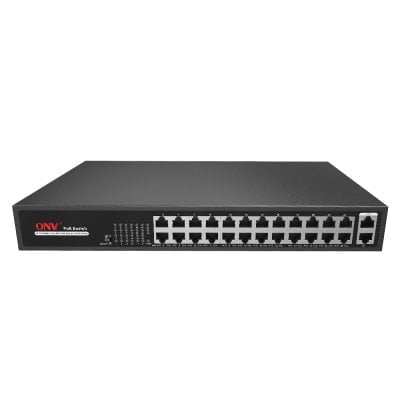

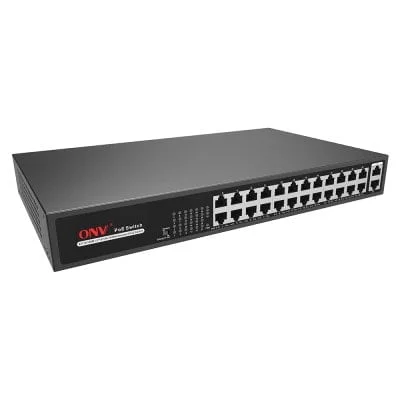

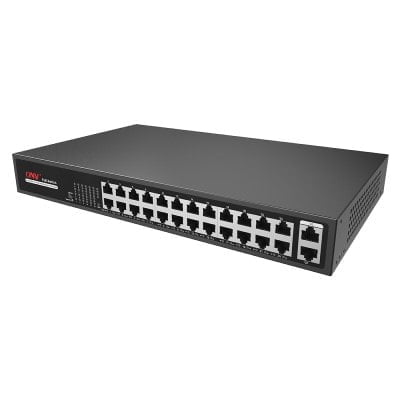

ONV-H3024PF 26Port Unmanaged Full Gigabit 26-port PoE Switch
2 in stock
Got A Question? Contact Us.
We Offer Good Discount Expert Technical Support
Key feature
- 24*10/100M Poe ports,802.3af/at+2*10/100/1000M RJ45 ports
- Max power per Poe port:30W.
- Built-in power supply
- Fiber module not included
$133.00
2 in stock
ONV-H3024PF 26 Port Unmanaged Full Gigabit 26-port PoE Switch
The ONV-H3024PF is a 26-port unmanaged full gigabit Ethernet network switch. It is designed for use in small to medium-sized businesses. The switch has a low-power consumption design and is energy-efficient. It supports 10/100/1000Mbps data rates and is backward compatible with 10/100Mbps Ethernet. The ONV-H3024PF supports a wide range of networking protocols and standards, making it a versatile and affordable solution for your business Ethernet needs.
With its 18 gigabit Ethernet ports, it can easily handle large traffic loads. And its plug-and-play design makes it easy to expand your network without having to call in a technician. With its 16*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports, the ONV-H3024PF has its 1 to 6 Ports support IEEE 802.3af/at standard PoE power supply, and single port PoE power of up to 30W.
FEATURE
10/100M access, Gigabit uplink
- Has 24*10/100M PoE ports and 2*10/100/1000M RJ45 ports for easy connection
- It is suitable for various networking requirements
- Support non-blocking wire-speed forwarding.
- Compatible with full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Stable and reliable, easy to use
- CCC,CE, FCC, RoHS.
- Supports 1U-19 inch cabinet rack.
- No setup required, simple plug and play.
- Galvanized steel case, low power consumption, no fan.
- Displays devices status through the LED indicator of power.
- Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
TECHNICAL SPECIFICATION

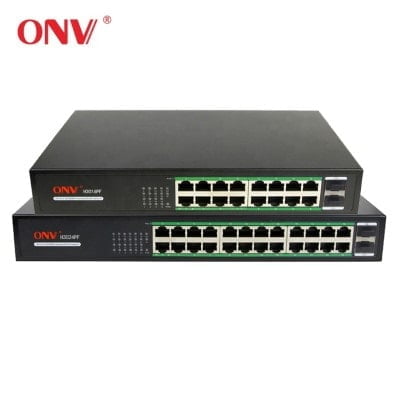

Model | ONV-H3016PF | ONV-H3024PF |
Interface Characteristics | ||
Fixed Port | 16*10/100/1000Base-T PoE ports (Data/Power) 2*1000Base-X uplink SFP ports (Data) | 24*10/100/1000Base-T PoE ports (Data/Power) 2*1000Base-X uplink SFP ports (Data) |
Ethernet Port | Port 1-16 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption | Port 1-24 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption |
Twisted Pair Transmission | 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
SFP Slot Port | Gigabit SFP optical fiber interface, default not matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
Optical Cable/ Distance | Multi mode: 850nm / 0 ~ 550M, single mode: 1310nm / 0 ~ 40KM, 1550nm / 0 ~ 120KM. | |
Chip Parameter | ||
Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3x | |
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 52Gbps (Non-blocking) | |
Forwarding Rate@64byte | 26.78Mpps | 38.69Mpps |
MAC | 8K | |
Buffer Memory | 4M | |
Jumbo Frame | 10K | |
LED Indicator | Power: PWR (green), network: Link (green),PoE: PoE (green), fiber: G1/G2(green), POE :PoE(green) | |
PoE & Power | ||
PoE Port | Port 1 to 16 IEEE802.3af/at @ POE | Port 1 to 24 IEEE802.3af/at @ POE |
Power Supply Pin | Defaul 1/2 (+), 3/6 (-) | |
Max Power Per Port | 30W; IEEE802.3af/at | |
Total PWR / Input Voltage | 250W /(AC100-240V) | |
Power Consumption | Standby<15W,Full Load<240W | Standby<20W, Full Load<250W |
Power Supply | Built-in power supply, AC 100~240V 50-60Hz 4.1A | |
Physical Parameter | ||
Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing | |
Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing | |
Dimension (L*W*H) | 270*181*44.5mm | 330*204*44mm |
Net /Gross Weight | <1.7kg / <2.2kg | <3.0kg / <3.5kg |
Installation | Desktop, wall mounted,19 inch 1U cabinet | |
Certification & Warranty | ||
Lightning protection / protection level | Lightning protection: 4KV 8/20us; Protection level: IP30 | |
Certification | CCC,CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS | |
Warranty | 1 year, lifelong maintenance. |
