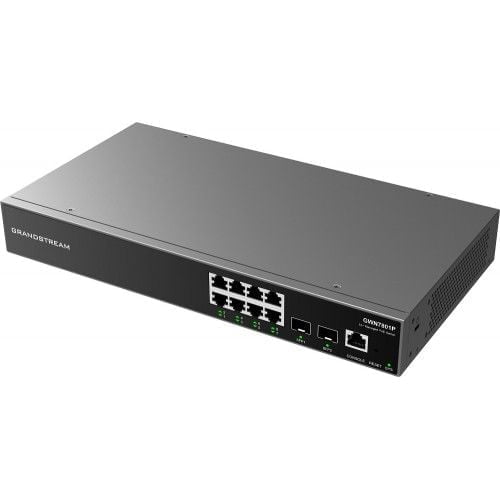

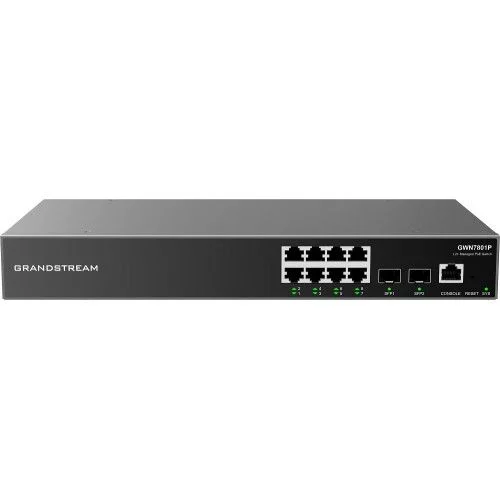

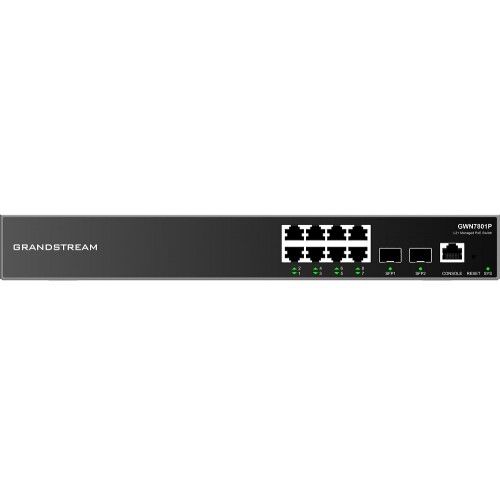

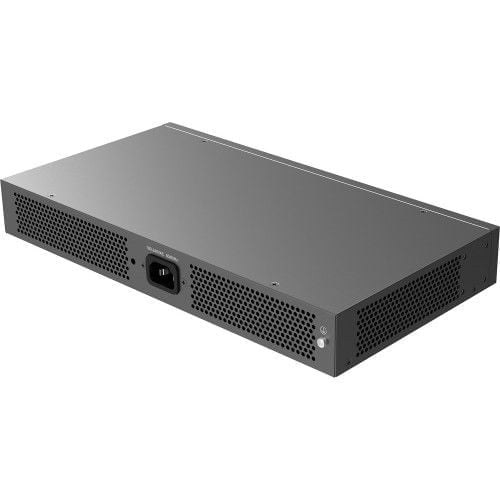

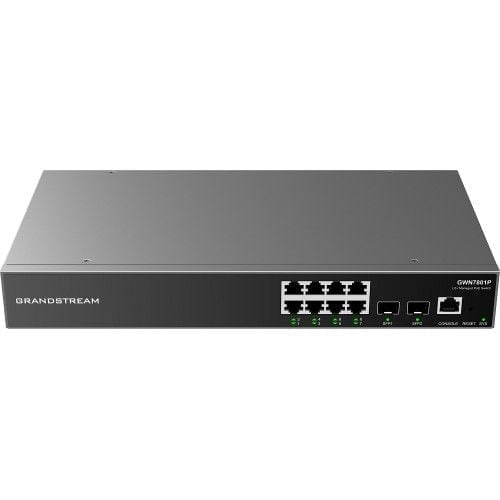

Grandstream GWN7801P 8-Port Gigabit Enterprise Layer 2+ PoE Managed Network Switch | Supports 8x Gigabit Ethernet Ports with PoE/PoE+

Grandstream

  • 5 Gigabit Ethernet ports
  • Support dynamic PoE/PoE+
  • 802.3 af/at compliant with up to 30W on each port
  • Green technology reduces power consumption
  • Support for long cable connections
  • LED Indicators; Per Port: Link/Activity/Speed, Per Device:Power
  • Auto MDI/MDIX crossover for all ports

$143.50

Compare
$524.37 for 3 item(s)

Grandstream GWN7801P 8-Port Gigabit Enterprise Layer 2+ PoE Managed Network Switch | Supports 8x Gigabit Ethernet Ports with PoE/PoE+

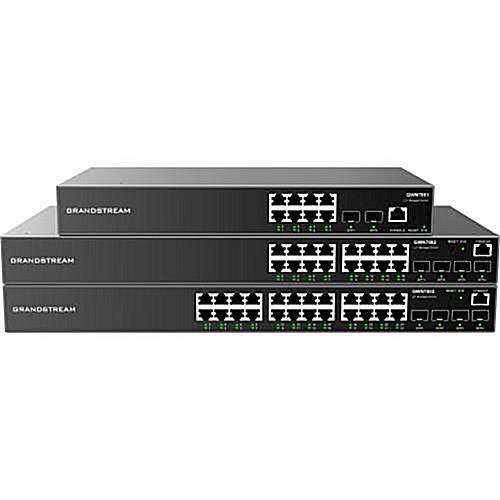

The Grandstream GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance of your devices. This smart layer 2+ managed network switch supports advanced VLAN for flexible and sophisticated traffic segmentation. The advanced QoS manages prioritization of network traffic and IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.

Its PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. And GWN7800 series can be managed in a number of ways, including the local web user interface of the GWN7800 series switch and ports. The series also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise s the Wi-Fi management platform is accurate. You are definitely going to get a high satisfactory result and stay informed with this Gigabit Ethernet Ports

.

Features of Grandstream GWN7800 Managed Network Switch:

  •  Supports 8x Gigabit Ethernet Ports with PoE/PoE+
  •  2x Gigabit SFP Ports
  • Supports dynamic PoE/PoE+ power allocation per port
  •  Provides quaternary binding of IP, MAC, VLAN & port
  • ARP Inspection, IP Source Guard, DoS protection and port security & DHCP snooping
  • 1x tri-color LED for device tracking and status indication.
  • Built-in QoS allows for prioritization of network traffic
  •  10x green LEDs for data ports
  • 8x yellow-color LEDs for PoE ports
SKU: GWN7801P Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
Weight 1.8 kg
Dimensions 330 × 175 × 44 mm
Brands

Color

Number of Ports

8-Ports

Brand Grandstream
  • Model: GWN7801P
  • Network Protocol:
    • IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z,
      IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
  • Gigabit Ethernet Ports: 8
  • Gigabit SFP Ports: 2
  • Console: 1
  • Number of PoE Ports: 8
  • Integrated Power Supply: 150W
  • Max Output Power per PoE Port: 30W
  • Max Total PoE Output Power: 120W
  • PoE Standards: IEEE 802.3af/at
  • Auxiliary Ports:
    • 1x Reset Pinhole
  • Forwarding Mode: Store-and-forward
  • Total non-blocking throughput: 10Gbps
  • Switching Capability: 20Gbps
  • Forwarding Rate:
    • 14.88M packets per second
  • Packet Buffer: 4.1MB
  • Switching:
    • 8K static, dynamic and filtering MAC addresses
    • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
    • VLAN virtual interface
    • GVRP
    • 8 link aggregation groups
    • Spanning tree, 64 instances for STP/RTSP/MSTP
  • Multicast: IGMP Snooping, MLD Snooping, MVR
  • Mounting: Desktop/ Wall-Mount
  • LEDs:
    • 1x tri-color LED for device tracking and status indication
    • 10x green-color LEDs for data ports
    • 8x yellow-color LEDs for PoE ports
  • Package Content:
    • GWN7801P Switch
    • 1x 1.2m(10A) AC Cable
    • 1x Ground Cable
    • 4x Rubber Feet
    • 2x Lug Ear
