Discover the Grandstream GWN7813P Enterprise-Grade Switches
, , , ,

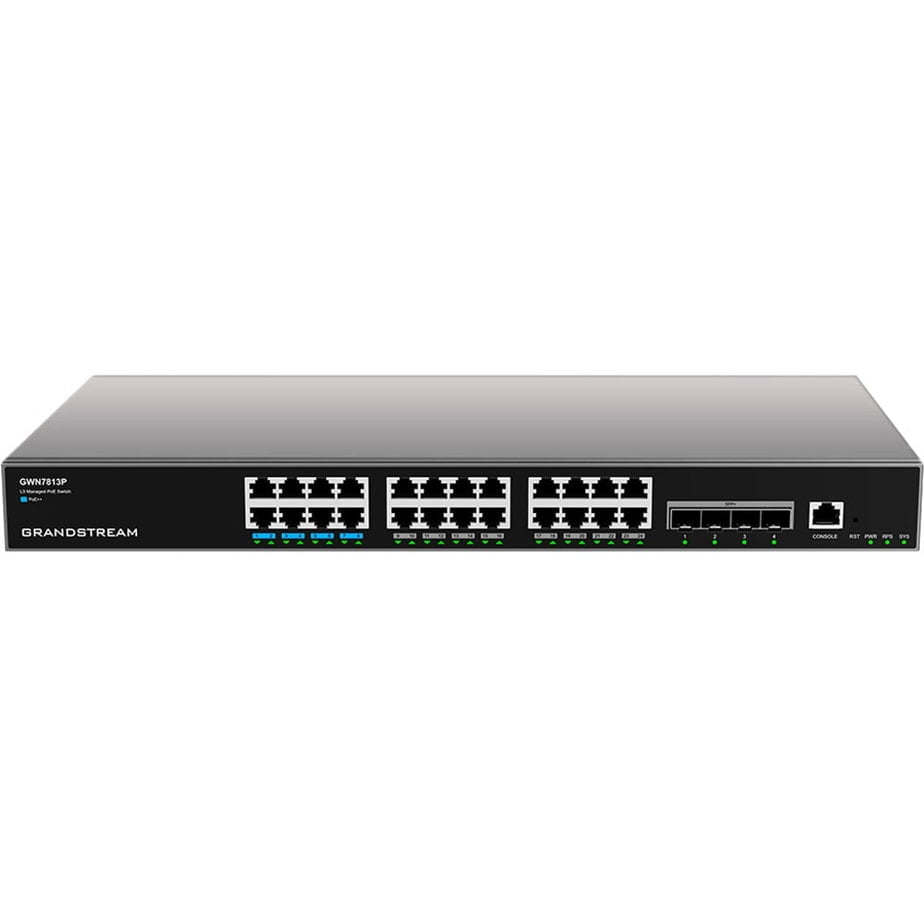

Grandstream GWN7813P 24-Port Gigabit Enterprise Layer 3 Managed PoE Network Switch

Grandstream
Compare
  • Supports deployment in IPv6 and IPv4 networks
  • ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
  • Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and
  • on-premise network management platform
  • Built-in QoS allows for prioritization of network traffic

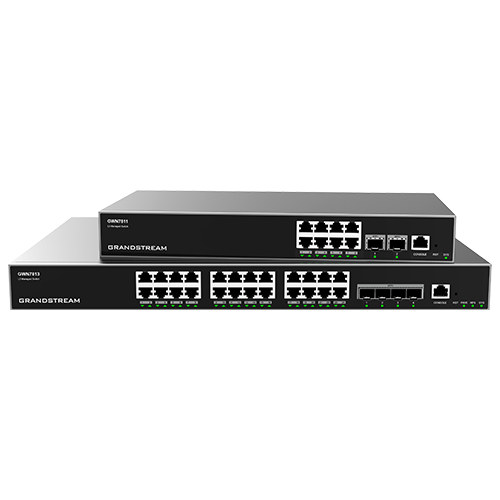

Grandstream GWN7811(P) – GWN7812(P) – GWN7813(P) Datasheet



$413.00

Compare
$602.50 for 3 item(s)

Grandstream GWN7812P Enterprise-Grade Layer 3 Managed Network Switches

Introducing the Grandstream GWN7813P Enterprise-Grade Layer 3 Managed Network Switches, a premier offering within the GWN7810 series tailored for medium-to-large enterprises. These advanced switches provide the foundation for building scalable, secure, and high-performance networks, boasting a comprehensive suite of features including advanced VLAN, QoS, and security functionalities. With PoE models offering dynamic power allocation to devices, deployment and operation are streamlined for maximum efficiency.

Key Features:

  • Advanced Networking Capabilities: The GWN7813P series supports deployment in both IPv6 and IPv4 networks, ensuring compatibility with modern and legacy infrastructures. Additionally, features such as ARP Inspection, IP Source Guard, DoS protection, port security, and DHCP snooping provide robust security measures to safeguard the network.
  • Efficient Management: Equipped with an embedded controller, these switches can be easily managed via various interfaces including web, CLI, GWN.Cloud, or GWN Manager. This flexibility allows for seamless network administration, whether it’s on-premise or through Grandstream’s cloud-based management platform.
  • Built-in QoS: With built-in Quality of Service (QoS) functionality, the GWN7813P series enables efficient prioritization of network traffic, ensuring optimal performance for critical applications and services.

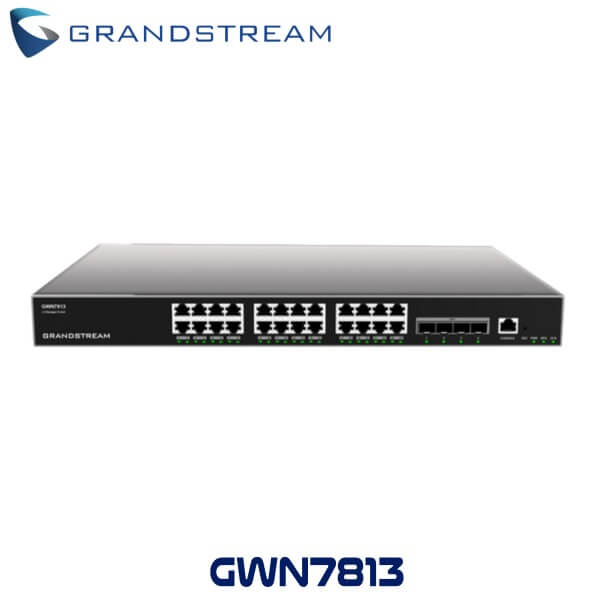

Grandstream GWN7813P Enterprise-Grade Layer 3 Managed Network Switches

  • 24x Gigabit Ethernet  ports and 4x 10Gigabit SFP+ ports
  • Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models, Ports 1-8 on the GWN7813P support PoE++
  • Supports deployment in IPv6 and IPv4 networks
  • ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
  • Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and
    on-premise network management platform
  • Built-in QoS allows for prioritization of network traffic

The Grandstream GWN7813P series stands as an ideal value-driven solution for medium-to-large businesses seeking to establish and manage advanced Layer 3 networks with ease and efficien

For Technical Support Contact

Related Products

SKU: GWN7813P Categories: , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
Weight4.69 kg
Dimensions440 × 300 × 44 mm
Brands

Color

Number of Ports

24-Ports

Grandstream GWN7813P Technical Specifications

BrandGrandstream
Network ProtocolIPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x
Gigabit Ethernet Ports24
10Gigabit SFP+ Ports4
Console1
# of PoE Ports24
Link Aggregation14
External Redundant Power Supply( RPS)54V(300W)
Max Output Power per PoE Port60W(1-8,PoE++)

30W(9-24)

Max Total PoE Output Power360W
PoE StandardsIEEE 802.3af/at/bt
Auxiliary Ports1x Reset Pinhole
Forwarding ModeStore-and-forward
Total non-blocking throughput64Gbps
Switching Capability128Gbps
Forwarding Rate95.232Mpps
Packet Buffer12MB
Switching

16K static, dynamic and filtering MAC addresses

4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN

VLAN virtual interface

GVRP (pending)

Spanning tree, 32 instances for STP/RSTP/MSTP



Routing

Static routing

Dynamic routing, including RIP, RIPng, OSPF and OSPFv3

Policy routing (pending)



Multicast

IGMP Snooping

MLD Snooping

MVR (pending)



QoS/ACL

Port priority

Priority mapping

Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ

Traffic shaping

Rate limit

2K ACL for Ethernet, IPv4 and IPv6



DHCPDHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43
MaintenanceCPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD (TBD) and copper test
Security

User hierarchical management and password protection, HTTPS, SSH, Telnet

802.1X authentication

AAA authentication including RADIUS, TACACS+

Storm control

Port isolation, port security, sticky MAC

Filtering MAC address

IP source guard, DoS attack prevention, ARP inspection

DHCP Snooping

Loop protection including BPDU protection, root protection(pending) and loopback protection(pending)

Kensington Security Slot (Kensington Lock) support



MountingDesktop, Wall-Mount, or Rack-Mount(rack-mounting kits included)
System LEDs1x tri-color LED for device tracking and status indication
Power Supply LEDs2x bi-color LEDs for per power supply PWR&RPS
Data Transferring LEDs28x green-color LEDs
PoE Powered LEDs24x yellow-color LEDs
Fan3
EnvironmentalOperation: 0°C to 45°C, humidity 10-90% RH(Non-condensing)

Storage: -10°C to 60°C, humidity: 5% to 95% RH(Non-condensing)

Dimensions440mm(L)x300mm(W)x44mm(H)
Unit Weight4.69Kg
Package Content1x Switch
1x 1.2m(10A) AC Cable
1x 25cm Ground Cable
4x Rubber Footpads
1x Power Cord Anti-Trip
8x Screws (KM 3*6)
1x Quick Installation Guide
1x Console Cable(Optional)
2x Rack-Mounting Kits
1x RPS, External Redundant Power Supply (Optional)
ComplianceFCC, CE, RCM, IC, UKCA
