Grandstream GWN7830 12Ports Layer 3 Aggregation Managed Switch
Got A Question? Contact Us.
We Offer Good Discount Expert Technical Support
Key Features
- 2 Gigabit Ethernet ports, 6 Gigabit SFP ports, 4 10Gigabit SFP+ ports
- Supports deployment in IPv6 and IPv4 networks
- Built-in QoS allows for prioritisation of network traffic
$213.00
row]

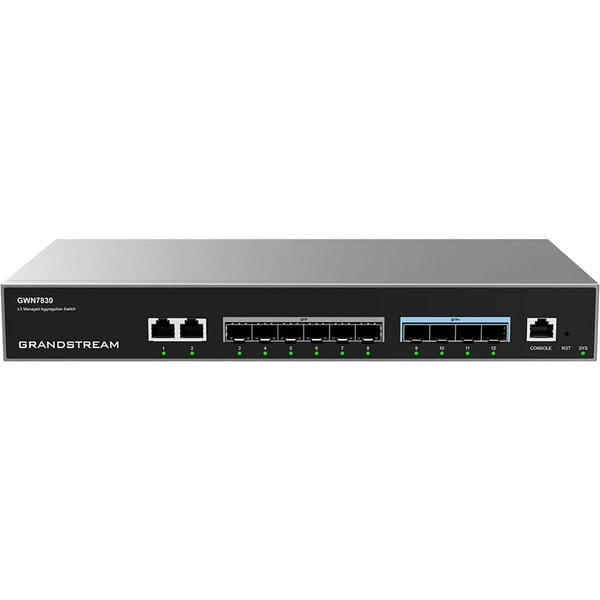

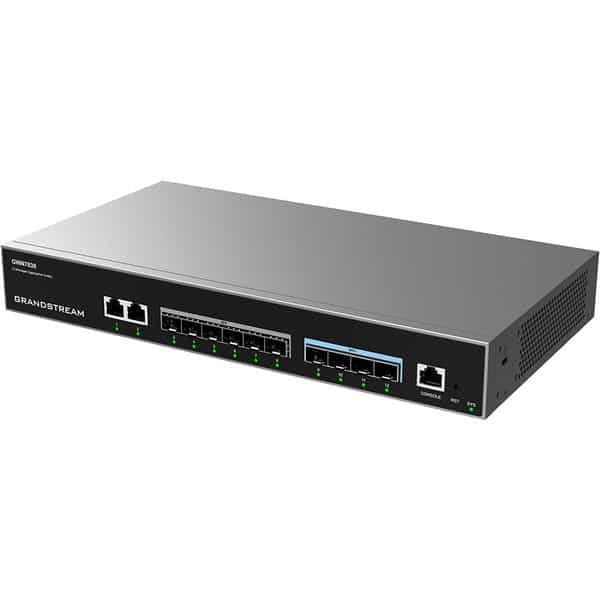

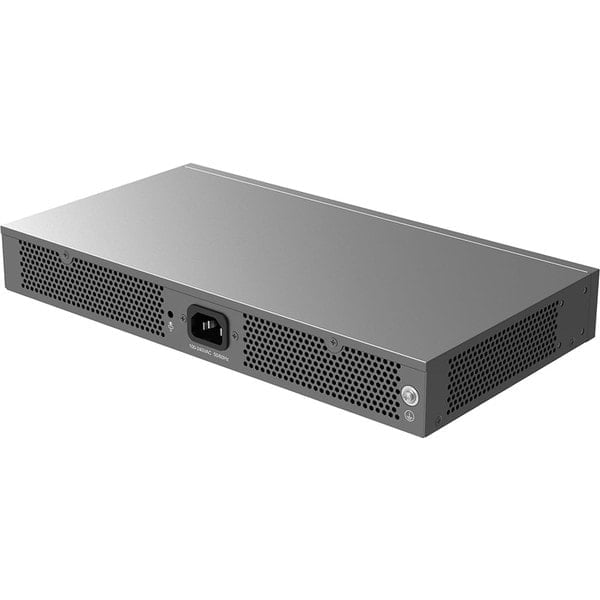

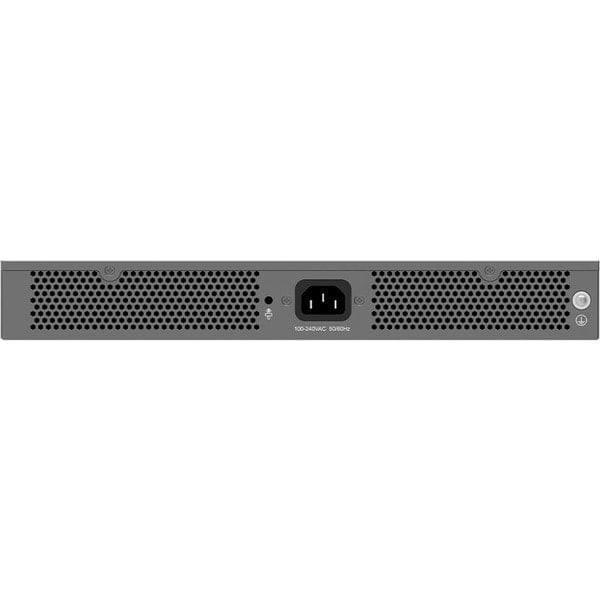

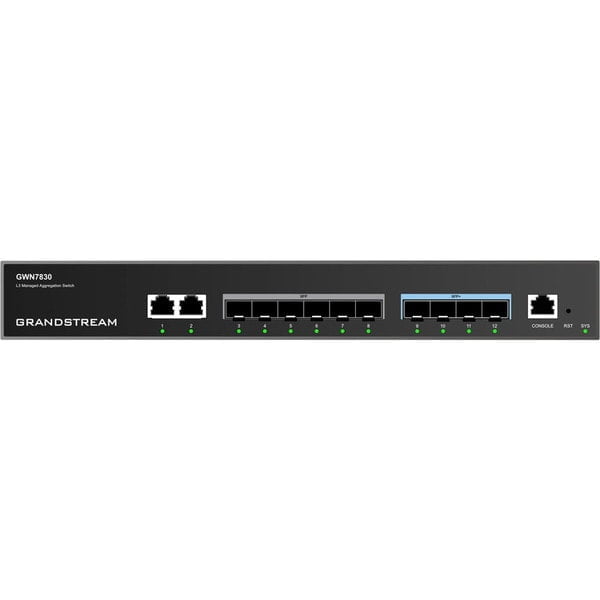

Grandstream GWN7830 12Ports Layer 3 Aggregation Managed Switch
The Grandstream GWN7830 Series represents a line of Layer 3 aggregation managed switches meticulously crafted to empower enterprises in establishing scalable, secure, high-performance, and intelligent business networks. These switches are adept at handling peak loads while remaining easily controllable.
Key Features of the Grandstream GWN7830 Series include:
- 2 Gigabit Ethernet ports
- 6 Gigabit SFP ports
- 4 10Gigabit SFP+ ports
- Support for deployment in both IPv6 and IPv4 networks
- Comprehensive security features including ARP Inspection, IP Source Guard, DoS protection, port security, and DHCP snooping
- Embedded controller for switch management, compatible with GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
- Built-in QoS capabilities for prioritizing network traffic
Management of the GWN7830 series is versatile, offering options such as the local Web user interface and the CLI (command line interface). Additionally, the series seamlessly integrates with GWN.Cloud and GWN Manager, providing enhanced management capabilities.
With its robust feature set including comprehensive quality of service, adaptable security configurations, and support for maximum network capacity, the GWN7830 Series stands out as an ideal choice for medium-to-large deployments requiring enterprise-grade Layer 3 aggregation switches.
For Technical Support Contact
Weight | 1.9 kg |
---|---|
Dimensions | 330 × 175 × 44 mm |
Brands | |
Color | |
Number of Ports | 12 Ports |
Grandstream GWN7830 Technical Specifications
Brand | Grandstream |
---|
Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
Gigabit Ethernet Ports | 2 |
Gigabit SFP Ports | 6 |
Gigabit SFP+ Ports | 4 (Note: Support DAC Cable and must be ≤ 5m) |
Maximum no. of Supported Modules | SM-1G: 6; MM-1G: 6; RJ45-1G: 3; SM-10G: 4; MM-10G: 4; RJ45-10G: 2 (Note: RJ45-1G, RJ45-10G modules must be interval inserted) |
Console | 1 |
Integrated Power Supply | 30W |
External Redundant Power Supply( RPS) | / |
Auxiliary Ports | 1x Reset Pinhole |
Forwarding Mode | Store-and-forward |
Total non-blocking throughput | 48Gbps |
Switching Capability | 96Gbps |
Forwarding Rate | 71.424Mpps |
Packet Buffer | 12Mb |
Network Latency | <4μs |
Switching | 16K MAC addresses, including static, dynamic and filtering MAC address 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN VLAN virtual interface GVRP (pending) 6 link aggregation Spanning tree, 32 instances for STP/RSTP/MSTP |
Routing | Static routing Dynamic routing, including RIP, RIPng, OSPF and OSPFv3 Policy routing(pending) |
Multicast | IGMP Snooping with IGMPv2 and IGMPv3 MLD Snooping with MLDv1 and MLDv2 MVR (pending) |
QoS/ACL | Port priority Priority mapping Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ Traffic shaping Rate limit 2K ACL for Ethernet, IPv4 and IPv6 |
DHCP | DHCP server, DHCP relay, Option 82, 60, 160 and 43 |
Maintenance | CPU and memory monitoring, fault detection and alarm for power supply and fan, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test |
Security | User hierarchical management and password protection, HTTPS, SSH, Telnet 802.1X authentication AAA authentication including RADIUS, TACACS+ Storm control Port isolation, port security, sticky MAC Filtering MAC address IP source guard, DoS attack prevention, ARP inspection DHCP Snooping Loop protection including BPDU protection, root protection(pending) and loopback protection(pending) Kensington Security Slot (Kensington Lock) support |
Mounting | Desktop, Wall-Mount or Rack-Mount (rack-mounting kits included) |
System LEDs | 1x tri-colour LED for device tracking and status indication |
Power Supply LEDs | / |
Data Transferring LEDs | 12x green-colour LEDs |
Fan | / |
Environmental | Operation: 0°C to 45°C, humidity 10% to 90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing) |
Dimensions | 330mm (L)x175mm(W)x44mm(H) |
Unit Weight | 1.91Kg |
Package Content | 1x Switch 1x 1.2m(10A) AC Cable 1x 25cm Ground Cable 4x Rubber Footpads 1x Power Cord Anti-Trip 2x Extended Rack-Mounting Kits 8x Screws (KM 3*6) 1x Quick Installation Guide 1x Console Cable (Optional) |
Compliance | FCC, CE, RCM, IC, UKCA |
