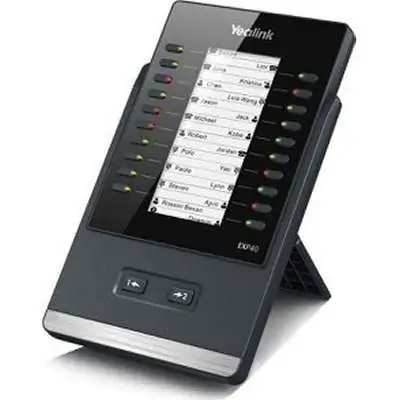

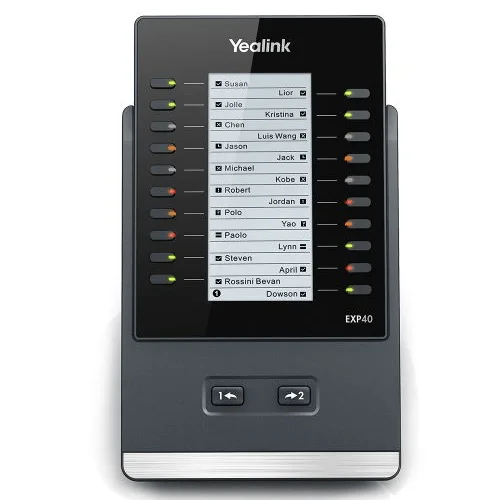

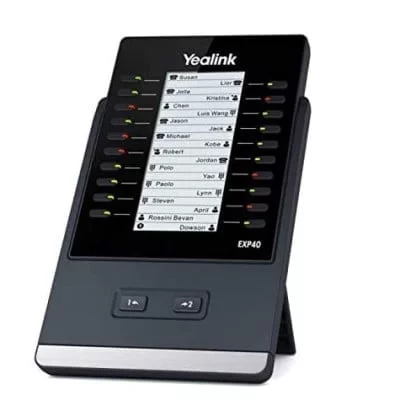

Yealink EXP40 LCD Expansion Module for SIP-T46G and SIP-T48G

Yealink

Got A Question? Contact Us.

We Offer Good Discount      Expert Technical Support

Key Features

  • Supports up to 6 modules
  • 20 physical keys each with a dual-colour LED
  • Stand with 2 adjustable angles
  • The host phone powers the Expansion Module

Downloads Documents & Manuals

$75.00

Compare
$760.00 for 3 item(s)

Overview of Yealink LCD Expansion Module

EXP40 expansion module is suitable for SIP T46G and SIP T48G models. It has the capacity to extend the functions of SIP phones to a whole new level with the appealing large graphic LCD display. The screen displays two pages, of which there are 20 customizable buttons, and up to 40 different functions can be programmed. Productivity functions include BLF/BLA, speed dialing, call forwarding, transfer, park, receiving, etc.

Revolutionarily new design

Redesigned to the smallest details to elegantly adapt to the look and feel of the T46G. The rubber feet that touch the desktop can prevent the phone from slipping off. The new bracket can achieve dual positioning, support wall-mounted installation, and the backlit display can achieve external lighting.

A rich visual experience for applications
Equipped with a 160×320 graphic LCD with backlight. There are 20 physical buttons available, each with a two-color LED and the ability to display two pages, allowing an additional 40 programmable buttons.
Scalability
Supports up to 6 expansion modules for auxiliary console applications, adding up to 240 additional buttons requires normal power supply (5 V / 1.5 V).2A) If they are more than 2 connections.

Physical Features

  • Wall mountable
  • Stand with 2 adjustable angles
  • The host phone powers the Expansion Module
  • Supports up to 6 modules daisy-chain
  • 2xRJ12(6P6C)ports for data in and out
  • Dimensions (W*D*H*T): 127mm*213mm*167mm*45mm Applies to Yealink IP Phone
  • Operating temperature: -10~50°C
  • Operating humidity: 10-95%

Yealink EXP40 IP Phone Expansion Module – Technical Specifications

Display

  • 160×320 graphic LCD with 16-level grayscales
  • LCD Backlight
  • Two page views are possible
  • Different icons for each function shown on the LCD

Feature Keys and Indicator

  • 20 physical keys each with a dual-colour LED
  • 20 additional keys through page switch
  • 2 independent control keys are used for fast switch pages
  • Programmable for shared line, BLF List, call park, conference, forward, group pickup, group listening, LDAP, pick UP, XML Browser

Physical Features

  • Wall mountable
  • Stand with 2 adjustable angles
  • Expansion module (≤2) is powered by the host phone
  • Supports up to 6 modules daisy-chain
  • 2xRJ12(6P6C)ports for data in and out
  • Dimensions (W*D*H*T): 127mm*213mm*167mm*45mm Applies to Yealink IP Phone
  • Operating temperature: -10~50°C
  • Operating humidity: 10-95%

Package Features

  • Qty/CTN: 10 PCS
  • N.W/CTN: 6.7 kg
  • G.W/CTN: 7.6 kg
  • Giftbox size: 237mm*154mm*100mm
  • Carton Meas: 520mm*317mm*247mm
