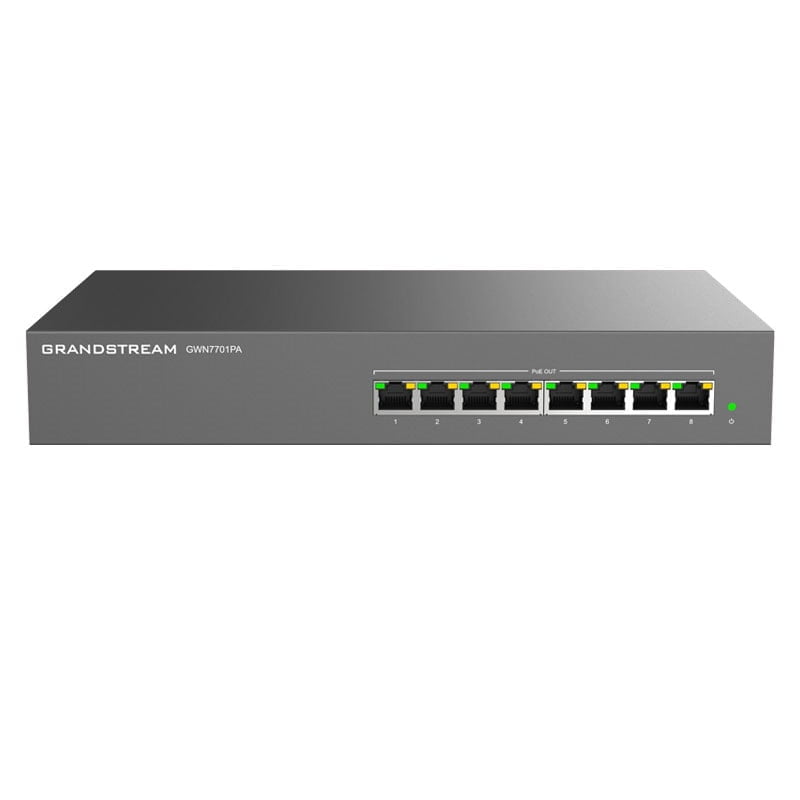

Grandstream GWN7701PA 8-Port Gigabit 8-Port PoE+ Switch

Grandstream

Got A Question? Contact Us.

We Offer Good Discount      Expert Technical Support

Key Features:

    • 8 x GigE (8 x PoE)
    • Metal Case
    • Unlink clear FDB Feature
    • 802.3 af/at compliant Up to 30W on each port
    • Green technology reduces power consumption
    • LED Indicators:
      • Per port: Link/Activity/Speed
      • Per device: Power
    • Auto MDI/MDIX crossover for all ports
    • Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
    • QoS – Supports Default Strict Priority when present

Grandstream GWN7700 Switch Series Datasheet



$78.38

Compare
$267.88 for 3 item(s)

Grandstream GWN7701PA Unmanaged Network PoE Switch

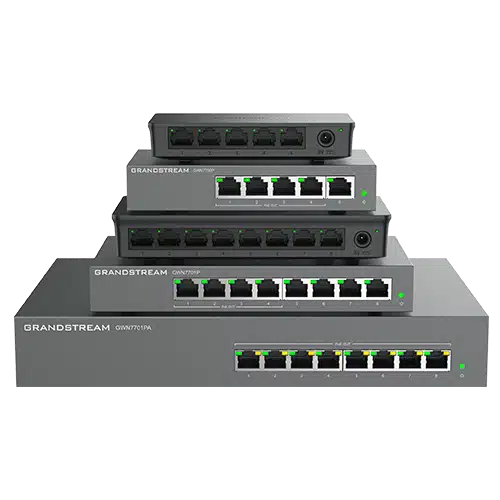

The GWN7700 series comprises unmanaged network switches, offering a swift and cost-effective solution to integrate high-speed Gigabit connectivity into home offices and small/medium businesses. With no configuration or installation required, these switches feature a versatile desktop and wall-mountable design. Additionally, they incorporate auto MDI/MDIX functionality, eliminating the need for crossover cables.

Each port supports auto-negotiation, enabling the GWN7700 series to seamlessly adapt to the link speed of any 10/100/1000Mbps network device for optimal performance. The PoE (Power-over-Ethernet) models feature IEEE 802.3af/at compliant ports, providing smart dynamic PoE output to power IP phones, cameras, Wi-Fi access points, and other PoE endpoints. Offering plug-and-play functionality, the GWN7700 series is the perfect choice for home offices and small-to-medium businesses seeking hassle-free network solutions.

Grandstream GWN7701PA Network PoE Switch Features

  • 8 Gigabit RJ45 ports, 8 port PoE+ output
  • Green technology reduces power consumption
  • LED Indicators; Per port: Link/Activity/Speed/PoE output, Per device: Power
  • Auto MDI/MDIX crossover for all ports
  • 802.3 af/at compliant Up to 30W on each port
  • Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
  • Unlink clear FDB Feature
  • QoS – Supports Default Strict Priority when present

For Technical Support Contact

SKU: GWN7701PA Categories: , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
Weight2.1 kg
Dimensions280 × 180 × 44 mm
Brands

Color

Number of Ports

8-Ports

Grandstream GWN7701PA Technical Specifications

BrandGrandstream
Gigabit Ports8
PoE Ports8
EnclosureMetal
MountingDesktop/Rack-Mount
Standards and

Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Port Feature8× 10/100/1000Mbps RJ45 Ports

AUTO Negotiation

AUTO MDI/MDIX

Network Media1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
PoE Configuration1~8 Ports 802.3 af/at compliant

Up to 30 W on Each Port, Total 145W Power Budget;

Overload to cut off the lowest-priority port.

Priority: Port 8 to Port 1



LED IndicatorsPer port: Link/Activity – Green

Per port: PoE output – Yellow

Per device: Power Green

Mac Address Table8K
Switching Capacity16Gbps
Jumbo Frame9KB
Advanced FeaturesMac Address Auto-Learning And Auto-Aging

IEEE 802.3x Flow Control

802.1p/DSCP QoS

Unlink clear FDB Feature

IGMP:

IGMP Fast-Leave

IGMP Snoop

Route Port Autolearn

Query Refresh Member Port



Power AdapterInternal 100-240V AC

AC, 50/60Hz,150W

Max Power Consumption by Base System6.7W @220V/50Hz

(excluding PoE output power

EnvironmentalOperating Temperature: 0 to 40 °C (32 to 104 °F)

Storage Temperature: -20 to 60 °C (-4 to 140 °F)

Operating Humidity: 10% to 90% Non-condensing

Storage Humidity: 10% to 90% Non-condensing

Dimensions (L x W x H)Unit: 280 x 180 x 44mm Package: 366 x 211 x 53mm
WeightUnit: 1.5KG, Entire Package: 2.1KG
Package1x Switch,

1x 1.2m AC Cable,

Rack-mounting

Standard Brackets,

4x Rubber Feet,

1x QIG

ComplianceFCC, CE, RCM, IC, UKCA
