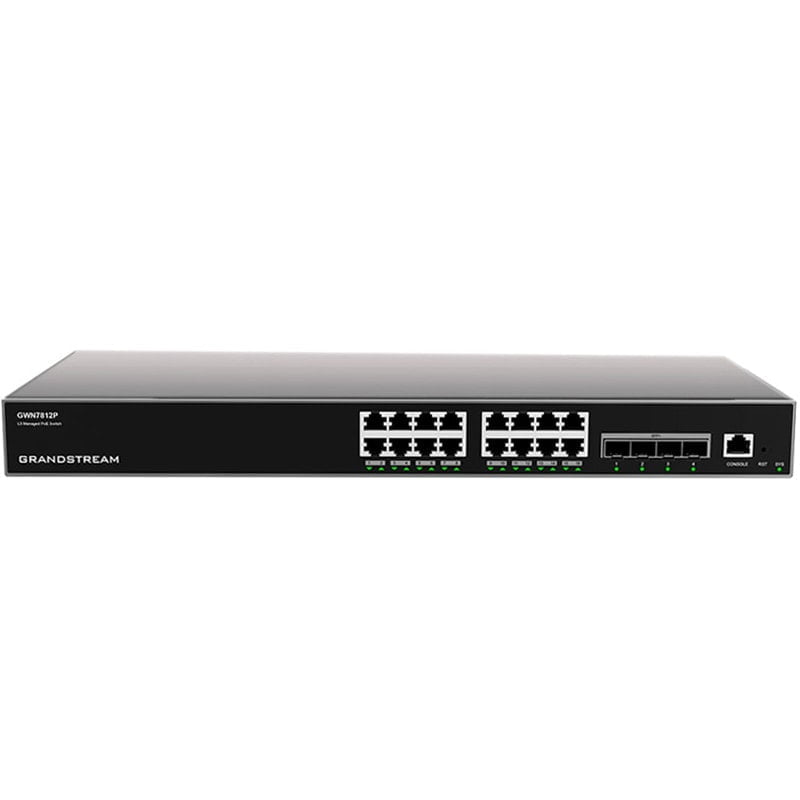

Grandstream GWN7812P 16-Port Gigabit Enterprise Layer 3 Managed PoE Network Switch

Grandstream
Compare
  • 16 POE ports
  • Supports deployment in IPv6 and IPv4 networks
  • ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
  • Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and
  • on-premise network management platform
  • Built-in QoS allows for prioritization of network traffic

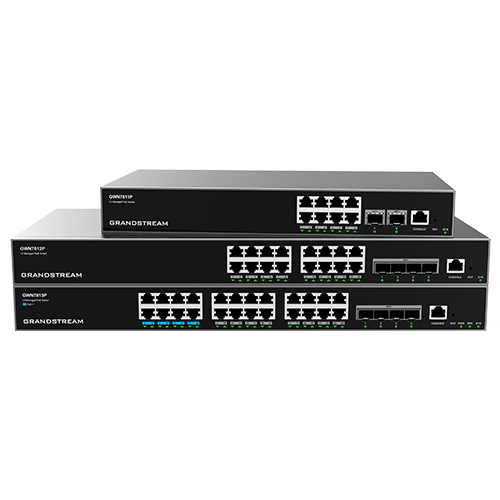

Grandstream GWN7811(P) – GWN7812(P) – GWN7813(P) Datasheet



$279.70

Compare
$469.20 for 3 item(s)

Grandstream GWN7812P Enterprise-Grade Layer 3 Managed Network Switches

Grandstream GWN7812P Enterprise-Grade Layer 3 Managed Network Switches. Designed as part of the GWN7810 series, these switches cater to medium-to-large enterprises, empowering them to establish scalable, secure, and high-performance networks. Featuring advanced VLAN, QoS, and security functionalities, they ensure robust network infrastructure.

Additionally, PoE models offer dynamic power allocation to devices. With management options including web, CLI, GWN.Cloud, or GWN Manager, handling network operations is seamless. The GWN7812P series supports deployment in both IPv6 and IPv4 networks and boasts a range of security features such as ARP Inspection, IP Source Guard, DoS protection, port security, and DHCP snooping.

Equipped with an embedded controller and compatibility with GWN.Cloud and GWN Manager, network management is simplified. Furthermore, built-in QoS enables efficient prioritization of network traffic, making it an ideal value-driven solution for medium-to-large businesses.

  • 8/16/24 Gigabit Ethernet ports and 2/4 10Gigabit SFP+ ports
  • Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models, Ports 1-8 on the GWN7813P support PoE++
  • Supports deployment in IPv6 and IPv4 networks
  • ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
  • Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and  on-premise network management platform
  • Built-in QoS allows for prioritization of network traffic

For Technical Support Contact

Related Products

SKU: GWN7812P Categories: , , , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
Weight3.03 kg
Dimensions440 × 200 × 44 mm
Brands

Color

Number of Ports

16-Ports, 24-Ports

Grandstream GWN7812P Technical Specifications

BrandGrandstream
Network ProtocolIPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x
Gigabit Ethernet Ports16
10Gigabit SFP+ Ports4
Console1
# of PoE Ports16
Link Aggregation10
External Redundant Power Supply( RPS)NA
Max Output Power per PoE Port30W
Max Total PoE Output Power240W
PoE StandardsIEEE 802.3af/at
Auxiliary Ports1x Reset Pinhole
Forwarding ModeStore-and-forward
Total non-blocking throughput56Gbps
Switching Capability112Gbps
Forwarding Rate83.328Mpps
Packet Buffer12MB
Switching

16K static, dynamic and filtering MAC addresses

4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN

VLAN virtual interface

GVRP (pending)

Spanning tree, 32 instances for STP/RSTP/MSTP



Routing

Static routing

Dynamic routing, including RIP, RIPng, OSPF and OSPFv3

Policy routing (pending)



Multicast

IGMP Snooping

MLD Snooping

MVR (pending)



QoS/ACL

Port priority

Priority mapping

Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ

Traffic shaping

Rate limit

2K ACL for Ethernet, IPv4 and IPv6



DHCPDHCP server, DHCP relay, DHCP Option 82, 60, 160 and 43
MaintenanceCPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD (TBD) and copper test
Security

User hierarchical management and password protection, HTTPS, SSH, Telnet

802.1X authentication

AAA authentication including RADIUS, TACACS+

Storm control

Port isolation, port security, sticky MAC

Filtering MAC address

IP source guard, DoS attack prevention, ARP inspection

DHCP Snooping

Loop protection including BPDU protection, root protection(pending) and loopback protection(pending)

Kensington Security Slot (Kensington Lock) support



MountingDesktop, Wall-Mount, or Rack-Mount(rack-mounting kits included)
System LEDs1x tri-color LED for device tracking and status indication
Power Supply LEDsNA
Data Transferring LEDs20x green-color LEDs
PoE Powered LEDs16x yellow-color LEDs
Fan2
EnvironmentalOperation: 0°C to 45°C, humidity 10-90% RH(Non-condensing)

Storage: -10°C to 60°C, humidity: 5% to 95% RH(Non-condensing)

Dimensions440mm(L)x200mm(W)x44mm(H)
Unit Weight3.03Kg
Package Content1x Switch
1x 1.2m(10A) AC Cable
1x 25cm Ground Cable
4x Rubber Footpads
1x Power Cord Anti-Trip
8x Screws (KM 3*6)
1x Quick Installation Guide
1x Console Cable (Optional)
2x Rack-Mounting Kits
1x RPS, External Redundant Power Supply (Optional)
ComplianceFCC, CE, RCM, IC, UKCA
